Code Coverage for a service

This tutorial describes how to collect code coverage for a service.

This tutorial covers the following:

1. 1. Modifying a service to use the NT Service API.
   2. How to use the Coverage Validator user interface to collect code coverage for the service.

Related tutorials:

Code coverage for a .Net Core application.
Code coverage for a .Net Core application child process.
Code coverage for a service.
Code coverage for a service child process.
Code coverage for an IIS ISAPI DLL.
Code coverage for ASP.Net with IIS.
Code coverage for ASP.Net with Web Development Server.

Native services and mixed-mode services

This tutorial applies to all native services and to mixed-mode services that start the service that uses the native Win32 services API.

.Net services

If your service is written entirely in .Net or .Net Core, or your service is mixed-mode with the startup code written in .Net or .Net core you can skip the part of this tutorial relating to the NT Service API and go straight to the collecting code coverage from a service section.

Example Service

Coverage Validator ships with an example service in the examples\service folder in the Coverage Validator installation directory.

Installing the example service

1. Open an administrator mode cmd prompt
2. Type serviceCV_x64.exe -install

Starting the example service

1. Open an administrator mode cmd prompt
2. Type serviceCV_x64.exe -start

or

1. Start the services control panel (type services in the Windows 10 search bar, then choose the Services app).
2. Find the service in the list of services, right-click to display the context menu, then choose Start.

Stopping the example service

1. Open an administrator mode cmd prompt
2. Type serviceCV_x64.exe -stop

or

1. Start the services control panel (type services in the Windows 10 search bar, then choose the Services app).
2. Find the service in the list of services, right-click to display the context menu, then choose Stop.

Uninstalling the example service

1. Open an administrator mode cmd prompt
2. Type serviceCV_x64.exe -remove

The service has already been modified to use the NT Service API. In this tutorial, we’ll describe the modifications you would make to the service to make it work correctly with Coverage Validator.

What is the NT Service API?

The NT Service API is a simple API that allows you to load the Coverage Validator profiling DLL and start the process of collecting code coverage.

The API also includes some debugging functions to help provide debugging information via log files (the only way to get data out of a service without a connection to the Coverage Validator user interface).

Modifying your service to use the NT Service API

1. Identify your service’s ServiceMain function, and just before that function, add a new function definition called serviceCallback(). In the example service, the ServiceMain is called service_main().

   The purpose of serviceCallback() is to regularly tell the service control manager that the service is alive. This prevents the service from being killed for being unresponsive if the instrumentation of your service takes too long (where too long is defined by the service control manager).

   void serviceCallback(void   *userParam)
   {
      // just tell the Service Control Manager that we are still busy
      // in this example userParam is not used

      static DWORD dwCheckPoint = 1;

      ssStatus.dwServiceType = SERVICE_WIN32_OWN_PROCESS;
      ssStatus.dwServiceSpecificExitCode = 0;

      ssStatus.dwControlsAccepted = 0;

      ssStatus.dwCurrentState = dwCurrentState;
      ssStatus.dwWin32ExitCode = dwWin32ExitCode;
      ssStatus.dwWaitHint = dwWaitHint;
      ssStatus.dwCheckPoint = dwCheckPoint++;

      // Report the status of the service to the service control manager.

      return SetServiceStatus(sshStatusHandle, &ssStatus);
   }

2. At the start of service_main() set the log file name and delete the log file, erasing any logging from a previous run of the service. This is to prevent debugging information from one session from interfering with another.

   svlCVStub_setLogFileName(SZLOGFILENAME);
   svlCVStub_deleteLogFile();


3. After the call to RegisterServiceCtrlHandler(), load the Coverage Validator profiling DLLs with a call to svlCVStub_LoadCoverageValidator(), or if you’re profiling x86 service from the x64 GUI call svlCVStub_LoadCoverageValidator6432(). The return code should be checked to identify success or to be converted into a human-readable string to be written to the log file.

   #ifdef IS6432
   // x86 with x64 GUI
   errCode = svlCVStub_LoadCoverageValidator6432();
   #else    //#ifdef IS6432
   // x86 with x86 GUI
   // x64 with x64 GUI
   errCode = svlCVStub_LoadCoverageValidator();
   #endif   //#ifdef IS6432
   if (errCode != SVL_OK)
   {
      DWORD   lastError;

      lastError = GetLastError();
      svlCVStub_writeToLogFileW(_T("Coverage Validator load failed. \r\n"));
      svlCVStub_writeToLogFileLastError(lastError);
      svlCVStub_writeToLogFile(errCode);

      svlCVStub_dumpPathToLogFile();
   }
   else
   {
      svlCVStub_writeToLogFileW(_T("Coverage Validator load success. \r\n"));
   }


4. Next, we inform Coverage Validator about the service callback. This must be done after the Coverage Validator DLLs are loaded, not before.

   errCode = svlCVStub_SetServiceCallback(serviceCallback,     // the callback
                                          NULL);               // some user data
   if (errCode != SVL_OK)
   {
      svlCVStub_writeToLogFileW(_T("Setting service callback failed. \r\n"));
      svlCVStub_writeToLogFile(errCode);
   }


5. Finally, we start Coverage Validator instrumenting your service to collect code coverage data.

   errCode = svlCVStub_StartCoverageValidator();
   if (errCode != SVL_OK)
   {
      DWORD   lastError;

      lastError = GetLastError();
      svlCVStub_writeToLogFileW(_T("Starting Coverage Validator failed. \r\n"));
      svlCVStub_writeToLogFileLastError(lastError);
      svlCVStub_writeToLogFile(errCode);
   }
   else
   {
      svlCVStub_writeToLogFileW(_T("Finished loading Coverage Validator\r\n"));
   }


Collecting code coverage from the service

Now that the NT Service API has been implemented in your service, we can start collecting code coverage from the service.

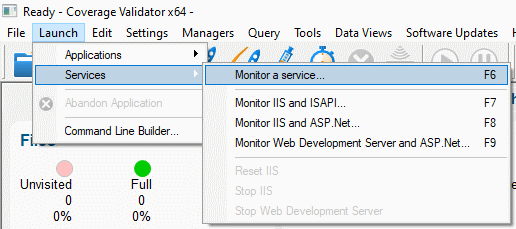

1. Choose the Launch > Services > Monitor a service… option.

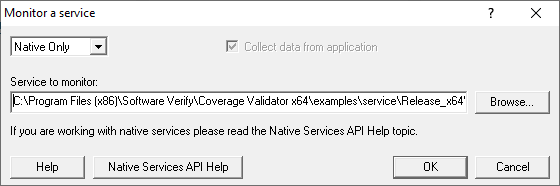

2. The Monitor a service dialog is displayed.



   Select the service executable you are going to monitor. For this example the application is examples\service\Release_x64\serviceCV_x64.exe.

   Choose the appropriate native/mixed-mode/.Net option to specify which types of code you want to collect code coverage for. Mixed-mode is the default, as this collects code coverage for all types of code.

   The collect data check box will not be modifiable if you are using breakpoints to instrument the code coverage.

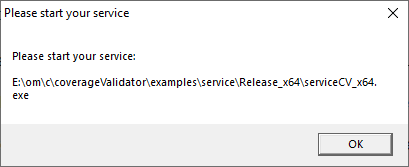

3. When you click OK, Coverage Validator will set up everything needed to interact with the NT Service API and then present you with a dialog box.



4. Start your service.
5. Close the dialog box.
6. Coverage Validator will instrument your service and start collecting code coverage.

Finishing collecting code coverage

To finish collecting code coverage, you need to stop your service.

Coverage Validator will collect code coverage through the service shutdown procedure and then present you with the complete code coverage data.

I’m not getting any code coverage. What can I do?

There are a few things to check.

1. Have you correctly added the NT Service API to the service?
2. Check the log file for any errors. You specified the log file in step 2 with the call

   svlCVStub_setLogFileName(SZLOGFILENAME);

3. Check the diagnostics tab. If the NT Service API is working correctly Coverage Validator will have some data. Information on instrumentation failures will be on the diagnostic tab.
4. Check the debug information dialog. You can access this from the Tools > DLL Debug Information… menu. This dialog will tell you which DLLs have debug information and which do not. Any DLLs that don’t have debug information you’ll need to ensure that debug information is built for these DLLs and is findable.

Conclusion

You have learned how to add the NT Service API to a native service, how to use Coverage Validator to monitor a service, and what to look at to diagnose errors if things don’t work first time.
