Filter definitions



Filter definitions consist of a set of criteria or rules by which you can exclude data from the various main tab views.



You can filter the data by many characteristics, including:



Full or partial callstack matching


Callstack symbol location details such as name, class, file, directory and DLL


Memory and handle allocation criteria


Object attributes such as size, type and address



Global filters, session filters and local filters all use the filter definition dialog to create or modify a filter.





The filter definition dialog



The filter definition dialog appears as shown below left, when you first create a new local, session or global filter.



However, it's much easier to create and edit a filter directly from an existing data item displayed in the Memory or Analysis tab.



The example on the right below has pre-populated filter options for callstack, object type, size, address and other useful data to filter on.

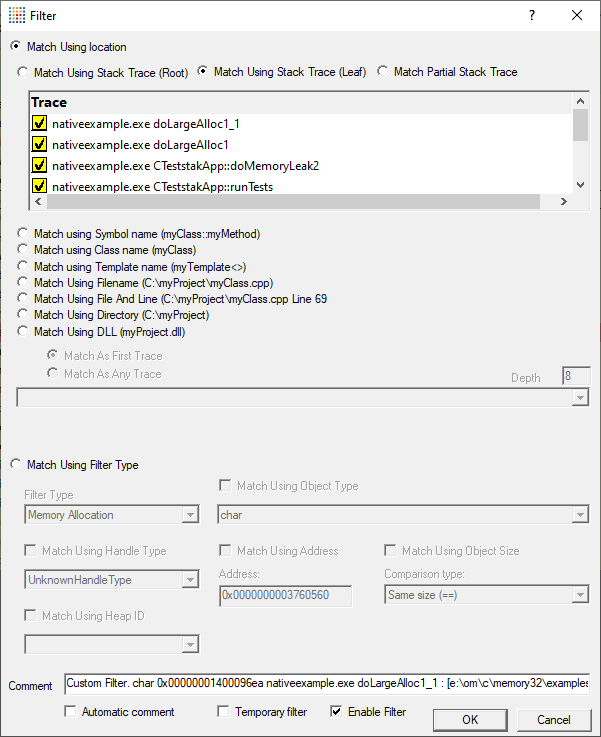

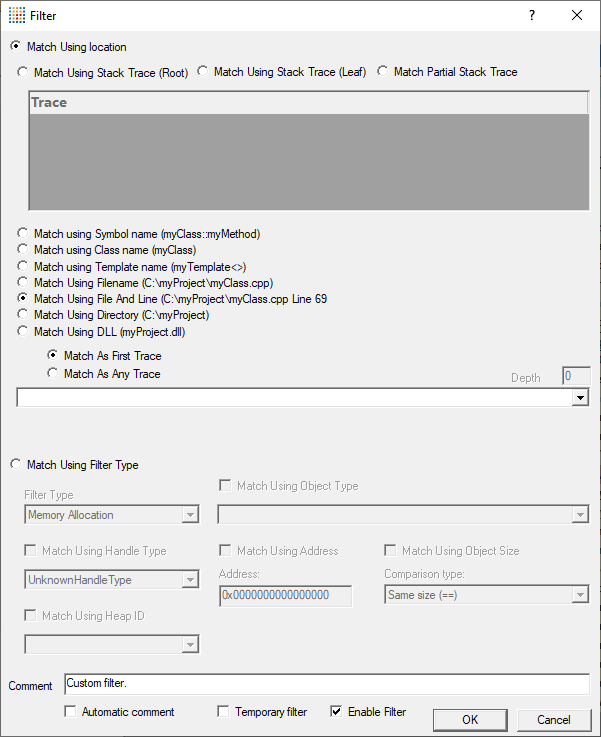

filter-definition-dialog   filter-definition-dialog-opulated



The options above may look complex, but you don't need to set all the options here - just focus on which of the criteria you want to filter by.





Filter by location or type



The dialog is split vertically into two halves: location-based options at the top and type-based options at the bottom



Match Using Location instructionStep filter using callstack location or source file location


Match Using Filter Type instructionStep filter using memory or handle object datatype attributes




Match using location (callstacks)

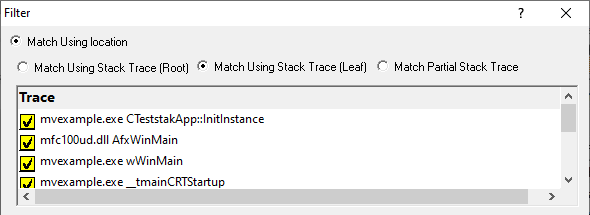

callstack-matching-top



When filtering by all or part of a callstack, that callstack has to come from an existing data item.



Popup menu options on the Memory tab and Analysis tab can create filters using the callstack of the data item.



Having first created a local, session or global filter this way, you can then edit the filter to change exactly how much of the callstack the filter needs to match.



There are three ways to match by callstack: root, leaf and partial, each of which is illustrated below.

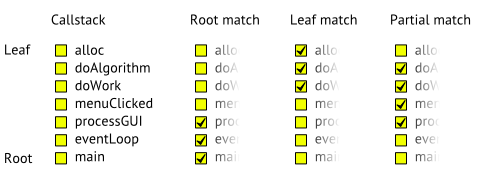

callstack-matching



Match Using Stack Trace (Root) instructionStep filter callstacks containing at least the root through all the selected functions


Ticking a box automatically ticks all items between it and the root.

Unticking a box unticks all items between it and the leaf



Match Using Stack Trace (Leaf) instructionStep filter callstacks containing at least from the leaf through all the selected functions


Ticking a box automatically ticks all items between it and the leaf.

Unticking a box unticks all items between it and the root.


Match Partial Stack Trace instructionStep match any callstack containing at least the selected functions



You can tick any boxes in any order, and they don't have to be contiguous.


Filtered items can have the selected items anywhere in their callstack.





Match using location (source)

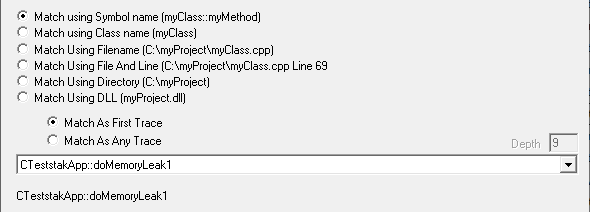

location-matching-mid


Match using...



Symbol name instructionStep match a selected function name or class::method name from the dropdown list


Class name instructionStep match a selected class name from the dropdown list


Filename instructionStep match a source file from the list



File and line instructionStep match a source file and line number



The list contains combinations of all known allocation points in the source files for the target program


Directory instructionStep match a directory file from the list



DLL instructionStep match a DLL from the list



The list contains DLLs loaded by the target program as well as the target executable itself



You can choose how much in the callstack is compared to find the selected item. The measure is from the leaf callstack position (see diagram above)



Match As First Trace instructionStep looks for the selected item only at the leaf position


Match As Any Trace instructionStep looks at within N levels from the leaf position


Enter the Depth (on the right) within which to match the selected item







Match using filter type



Instead of filtering by callstack location, you can filter according to



attributes of the object being allocated

the type of item in the display

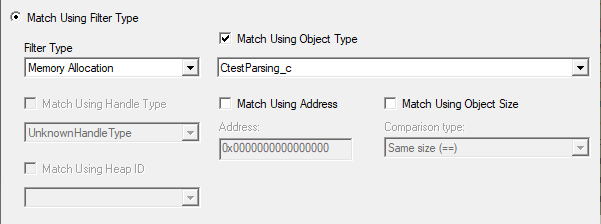

type-matching-bot



First you need to decide what type of filter you want to create.



Filter Type instructionStep choose a type of filter from the list below


filter-type


Changing the filter type enables other parts of the dialog so you can set specific filter values.



When the filter type is set to Memory Allocation, you can target the filter with object type, size and address.



Some of the filter types simply allow you to include or exclude these types of items in the display.





Match using object type



Match Using Object Type instructionStep choose a type from the Object Type dropdown list




Match using object size



Match Using Object Size instructionStep choose from the Comparison type dropdown list and a size, or size range


You can match exact sizes, greater than or less than a size, or inside or outside a range


note Remember filters exclude data, so take care with your logic on this (and other) options!




Match using address



Matching address is useful if want to select a particular COM Object for example, so that all AddRef(), Release() and QueryInterface() calls can be shown.



Match Using Address instructionStep enter a specific allocation address to match against



Combined with the Invert Match option below, this option is great for displaying data about just one particular object.





Match using handle or heap



When the filter type is set to Handle Allocation, you can filter by handle type and/or heap id.



Match using Handle Type instructionStep select the type of handle to filter


Common resource handles might be Bitmap, Brush, Font etc, but there are a host of other handle types in the list.



Match using Heap ID instructionStep select the id of the heap to filter, if any have been created



If a heap has been named, the heap name will be shown in the list instead of the heap ID





Other Match types



Other filter types include trace messages, error conditions, uninitialised data and COM reference counts.



These types have no further options necessary to filter the relevant data out of a display.





Filter Details



Finally, the details at the bottom let you add a comment to the filter and control how the filter gets applied, if at all.



filter-definition-dialog-details



Comment instructionStep enter a description of the filter to show in group filter lists


Usually the comment is auto-generated from the selected filter options, but you can add your own touch here!



Temporary Filter instructionStep set the filter to be temporary - meaning it won't be saved


Enable Filter instructionStep enables and disables the filter
