Monitoring a service with the NT Service API

By Stephen Kellett
11 February, 2020

Debugging services is a pain. There is a lot that can go wrong and very little you can do to find out what went wrong. Perfect! Just what you need for an easy day at work. Services run in a restricted environment, these days you also need to be Administrator to do anything with them, and getting your favourite software tool which isn’t a debugger working with them is hard. I remember years ago seeing the list of things you needed to do to get NuMega’s BoundsChecker to work with services. It was a couple of web pages of instructions, each line containing a detailed step. You had to do all of the actions correctly in order to set things up to work with services.

These days Microsoft has changed the security landscape and it’s no longer possible to launch your data monitoring software tool from a service as that ability is correctly regarded as a security vulnerability. It’s also pretty much impossible to inject into a service from a GUI application. As a result, the correct way to work with services is to add a few lines of glue code, in the form of calls to an API that setup communications with an already running user interface.

We’ve described our updated NT Service API in a previous article, so in this article, I’m going to talk about using the API to track errors in the service code calling the API and also describe how you use the user interface to work with services. This article will focus on Memory Validator, but the techniques described here will also work for Coverage Validator, Performance Validator and Thread Validator.

Native, mixed-mode, or .Net?

If you’re using a native service or a mixed-mode service with a native entry point all of this article applies to you.

If you’re using a .Net service, or a mixed-mode service with a .Net entry point you don’t need to use the API, but the GUI parts of this article will still apply to you.

Monitoring a Service

Before we get into the error codes and error handling in the GUI, let’s first take a tour of how things should work if everything goes to plan. This will provide some context for the errors I’m going to describe later. I’m going to assume you’ve built both the example service and the example service client, and that you’ve installed the service (serviceMV.exe -install in an Administrator mode command prompt). The service client passes a string to the service, which reverses it and passes it back to the client. The service also deliberately leaks some memory for testing purposes.

Here’s a video of the process.

From the Launch menu, choose Monitor a Service.

Launch menu

The Monitor a Service dialog is displayed.

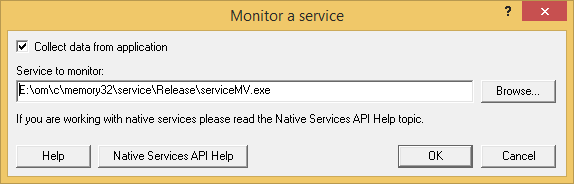

Monitor a service dialog

Enter the full path to your service and click OK to start monitoring. The Validator will now setup some environment variables and some data in the registry that will be used by the service API. After a few seconds the Start your Service dialog appears.

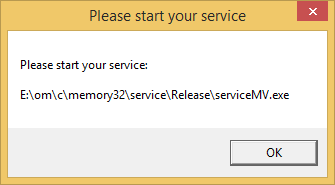

Please start your service

Click OK, then start your service (you’ll need to do this from an Administrator command prompt).

serviceMV -start

The Validator attaches to the service and after a few moments various status information in the Validator title bar and the Validator status bar updated.

It is possible that you may get a debug information informational dialog displayed. You can dismiss this (it can be viewed from the Validator Tools menu). To change how symbols are found you’ll need to look at the Symbol Server and File Locations parts of the Validator settings dialog.

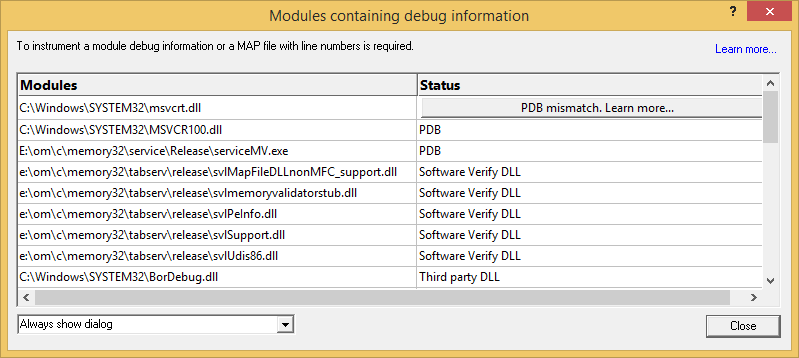

Missing debug information

Next a dialog is displayed informing you that Administrator Privileges may be required.

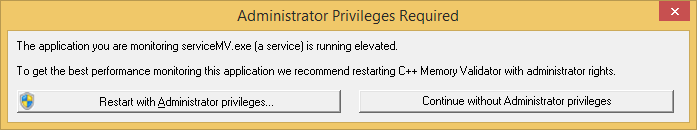

Privileges required

For some services you may find that the Validator gets better data, or sends data to the GUI faster if the Validator is run in Administrator mode. If that is the case you’ll need to restart the Validator with Administrator privileges (and also stop and restart the service, etc).

For this particular example service, we don’t need Administrator privileges so we’ll continue without them.

Now we can interact with the service from the service client by sending a string to the service. The service reverses it and sends it back.

serviceClient "Hello World"

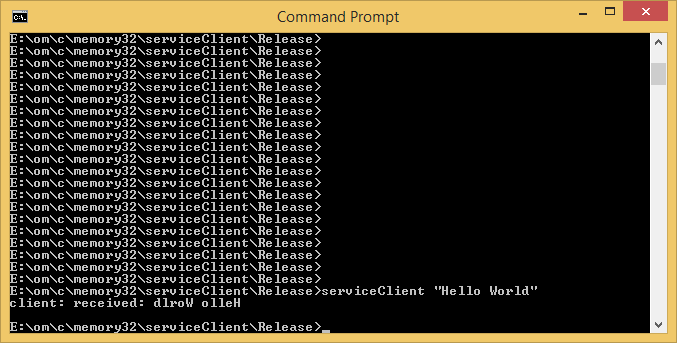

Service client

Once we’re done working with the service we can stop it (you’ll need to do this from an Administrator command prompt).

serviceMV -stop

The Validator disconnects from the service and displays all the data it has collected from the service.

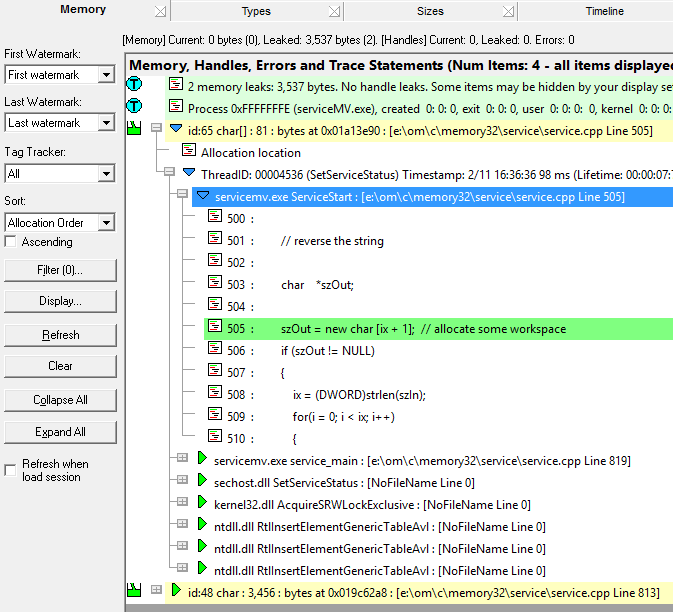

Memory Validator displaying leaks in the service

That’s how it looks when everything goes according to plan.

What happens when things go wrong? That’s what the next section is about.

Tracking errors in the service

The various API functions return a SVL_SERVICE_ERROR error code. We’ve extended this code so that you can detect when the user has forgotten to do something prior to starting the service, or you can detect if various other error conditions have occurred. Some of these error codes are internal error codes and should never be seen by a customer, but we’re documenting them here for completeness.

  • SVL_FAIL_PATHS_DO_NOT_MATCH. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_INCORRECT_PRODUCT_PREFIX. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_X86_VALIDATOR_FOUND_EXPECTED_X64_VALIDATOR. Looks like you’re monitoring a 64 bit service with a 32 bit Validator. You need to use a 64 bit Validator.
  • SVL_FAIL_X64_VALIDATOR_FOUND_EXPECTED_X86_VALIDATOR. Looks like you’re monitoring a 32 bit service with a 64 bit Validator with the svl*VStubService.lib library. You need to use a 64 bit Validator with the svl*VStubService6432.lib.
  • SVL_FAIL_DID_YOU_MONITOR_A_SERVICE_FROM_VALIDATOR. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_ENV_VAR_NOT_FOUND. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_VALIDATOR_ENV_VAR_NOT_FOUND. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_VALIDATOR_ID_NOT_SPECIFIED. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_VALIDATOR_ID_NOT_A_PROCESS. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.
  • SVL_FAIL_VALIDATOR_NOT_FOUND. Internal error. Looks like you forgot to Monitor a Service from the Launch Menu before starting the service.

To aid in debugging we strongly recommend that you log all error codes (successful or failure) from Software Verify API calls. This will allow you to track down errors rapidly rather a series of trial error coding mistakes or a back and forth with support but with no information to help support. We added all of the above error codes after 3 customers all reported similar, but different problems with using the service API. All of their problems would be have been solved if these error codes had been available.

Error codes can be logged with this call.

void writeToLogFile(const wchar_t     *fileName,
                    SVL_SERVICE_ERROR errCode);

Helpful messages can be logged with this call.

void writeToLogFile(const wchar_t *fileName,
                    const wchar_t *text);

Error codes can be turned into human readable messages with this call.

const wchar_t *getTextForErrorCode(SVL_SERVICE_ERROR	errorCode);

And if you need to log Windows error codes, use this call.

void writeToLogFileLastError(const wchar_t *fileName,
                             DWORD         errCode);

See the help documentation for all the available API calls.

Tracking errors in the GUI

There are a couple of mistakes that can be made in the user interface. These are related to monitoring the wrong type of service, and the location of the service. Where it is possible to identify this error in the GUI, we will do so. Where it is not, the error codes described above will help you understand the mistake that has been made.

64 bit Service, 32 bit GUI

If you try to monitor a 64 bit service with a 32 bit GUI that will fail. We can detect this and prevent this. When this error happens you will be shown an error dialog similar to this.

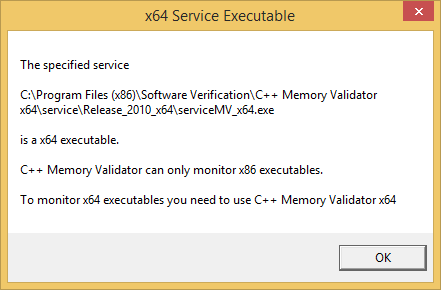

Service error dialog

Note that monitoring a 32 bit service with a 64 bit GUI is OK, but you need to use the svl*VStubService6432.lib not the svl*VStubService.lib. We can’t detect this from the GUI, which is why the SVL_FAIL_X64_VALIDATOR_FOUND_EXPECTED_X86_VALIDATOR error code exists – you will get this if you are linked to svl*VStubService.lib when you should be linked to svl*VStubService6432.lib.

Service on a network share

Windows won’t let you start a service on a network share. And yet I’ve lost count of the number of times I’ve tried to do this. This is typically because I have the solution working on machine X (where I wrote it) and wish to test on machine Y, and I just use a network share to map it across. This works for applications and fails for services. This can be a real time waster and Windows isn’t exactly helpful about this, and of course it’s in a service’s startup code, so fun debugging that.

To make this failure easier to detect we check the path of the service you specify in the Monitor a Service dialog and determine if the service is on a network share. If it is we tell you we can’t work with it. This then alerts you to the fact you’ll need to copy that service locally to run tests on it. Probably and hour or two of your time saved, right there.

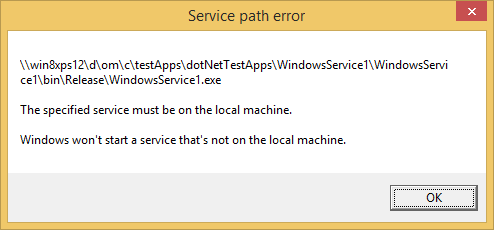

Can't monitor a service on a network connection

Conclusion

Working with services can be fraught with problems, but if you log your error codes you can easily and quickly identify any errors made configuring your use of the NT Service API that we were unable to catch with the Validator user interface.
