Example use of bookmarks



To demonstrate the use of bookmarks we'll run the example application once, add some bookmarks, do more work and then easily return to the bookmarked items.





mvMemVal



Memory tab instructionStep Display... instructionStep ensure All Memory (leaks, errors, unleaked) is selected in the first combo box



launch nativeExample.exe instructionStep wait until attaching is complete



Memory tab instructionStep Refresh instructionStep the display updates to include the usual selection of allocations



Pick three allocations of interest, perhaps the most recent allocations of different datatypes, such as CString, int [] or DWORD []



For each one, do the following:

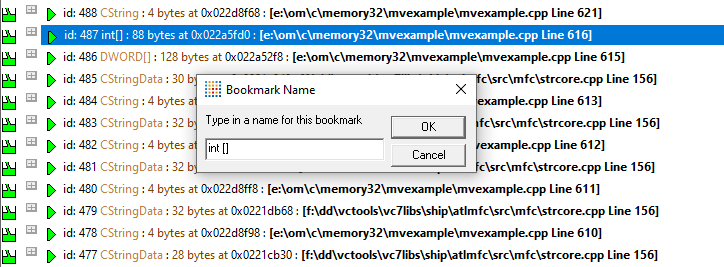

right_mouse_buttonAdd Bookmark... instructionStep shows the Bookmark Name dialog pre-filled with an automatic name



Enter a name of your choice, for example relating to the data type you selected instructionStep OK instructionStep adds a bookmark to the system



example-bookmarks-name



There are now three bookmarks for three different traces in the bookmark manager.



We'll come back to these later, but first we'll make some more allocations.





nativeExample1



menu Allocations menu instructionStep Test Many Hooks at Once instructionStep makes a selection of allocations



Feel free to make any more allocations you wish, using the test options in the example program.





mvMemVal



Memory tab instructionStep Refresh instructionStep the display should refresh to include the new items.



The items you bookmarked are a little further down the display, but in a real world scenario, they might be lost in a sea of data!

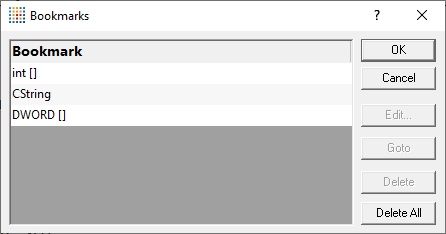

menu Managers menu instructionStep Bookmark Manager... instructionStep displays the Bookmarks dialog



You should see the three bookmarks you added earlier



example-bookmarks-manager

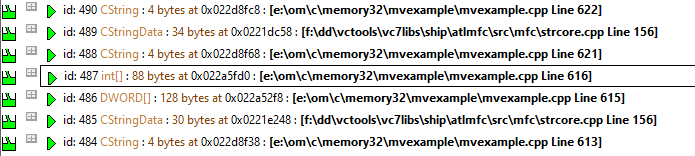

Select one of the bookmarks. In this case we'll choose int [ ].



Goto instructionStep scrolls the display to the original item bookmarked for this name.



example-bookmarks-selected



Bookmarks can only be used on the Memory tab and the Analysis tab.



note If the memory has been deallocated the trace will no longer be displayed on the memory view. The bookmark manager won't be able to find it. Use the Analysis view instead.





nativeExample1



menu File menu instructionStep Exit
