Launching the program (.Net Core)

Scroll Prev Top Next More



Launching the application



Having Memory Validator launch your program is the most common way to start up



When you're ready to start running a .Net Core program



menu Launch menu instructionStep Applications instructionStep Launch .Net Core Application instructionStep Shows the .Net Core launch dialog below



Or use the shortcut



 b_shift + b_f4  Launch .Net Core Application



seeAlsoYou can easily re-launch the most recently run program.

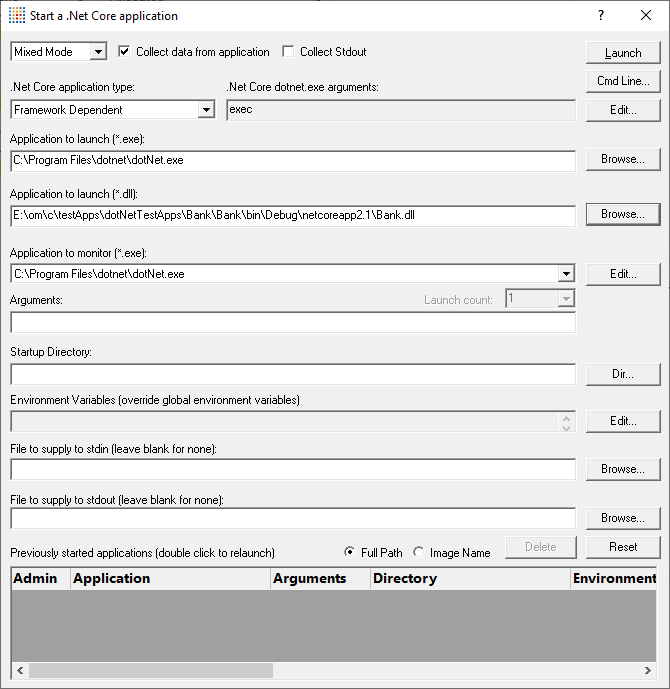

 LaunchDotNetCoreApplication





.Net Core Application Type



.Net Core applications can be self contained or framework dependent. This changes how the launch dialog works.



.Net Core application type instructionStep choose which type of .Net Core application you are launching





.Net Core Self Contained Application



Application to launch (*.exe) instructionStep type or Browse to set the program name (*.exe) to launch



When you set this value the Application to launch DLL field will be automatically populated to have the same name as the EXE field but with a .DLL extension.



Application to launch (*.dll) instructionStep type or Browse to set the program name (*.dll) to launch



Application to monitor instructionStep choose the application that actually gets monitored


This will typically just be the program that you set to start - unless otherwise specified.



Alternatively you can monitor another application which will get launched by the start program.



If the start application has already been added to the Applications to Monitor settings with a default application then that default will be entered here automatically.



Otherwise, if nothing has been set up yet, you can do it from here:



Edit... instructionStep set the child applications that can be monitored for the start program



This uses the Applications to Monitor dialog - which is exactly equivalent to using the Applications to Monitor settings page.



A fallback option is to start monitoring <<Any application that is launched>>.



note If in doubt, just use the same as the start application.



seeAlsoSee also: Application to Monitor settings





.Net Core Framework Dependent Application



Application to launch (*.exe) instructionStep type or Browse to set the program name (*.exe) to launch



We don't auto-populate this field when you choose the Framework dependent application type. This because you may have your .Net Core runtime stored in a location that we can't auto-detect.



To accommodate alternate locations for the .Net Core runtime we only auto-populate this field if it is empty when you choose the application DLL.



Application to launch (*.dll) instructionStep type or Browse to set the program name (*.dll) to launch



If you set this when Application to launch EXE field is empty, the EXE field will be automatically populated with the path to the system .Net Core framework dependent runtime.



This is typically c:\program files\dotnet\dotnet.exe.



Application to monitor instructionStep choose the application that actually gets monitored


This will typically just be the program that you set to start - unless otherwise specified.



Alternatively you can monitor another application which will get launched by the start program.



If the start application has already been added to the Applications to Monitor settings with a default application then that default will be entered here automatically.



Otherwise, if nothing has been set up yet, you can do it from here:



Edit... instructionStep set the child applications that can be monitored for the start program



This uses the Applications to Monitor dialog - which is exactly equivalent to using the Applications to Monitor settings page.



A fallback option is to start monitoring <<Any application that is launched>>.



note If in doubt, just use the same as the start application.



seeAlsoSee also: Application to Monitor settings



.Net Core dotnet.exe arguments instructionStep any arguments that will be passed to the .Net Core runtime to control how the .Net Core runtime behaves.



Edit... instructionStep displays the .Net Core runtime arguments editor





Fields common to all .Net Core applications



Launch Count instructionStep when monitoring a child application, set its nth invocation as the one to monitor



If the application to start is the same as the application to monitor then this is set to 1 and cannot be changed.



This will be reset to 1 every time the Application to Monitor field selection changes.



note If in doubt, leave it set to 1.



seeAlsoSee also: Launch Count.



Command Line Arguments instructionStep enter program arguments exactly as passed to the target program



Startup Directory instructionStep enter or click Dir... to set the directory for the program to start in


When setting your target program, this will default to the location of the executable



Environment Variables instructionStep click Edit... to set any additional environment variables before your program starts


These are managed in the Environment Variables Dialog.



File to supply to stdin instructionStep optionally enter or Browse to set a file to be read and piped to the standard input of the application



File to supply to stdout instructionStep optionally enter or Browse to set a file to be written with data piped from the standard output of the application




Using details from a previous run



The list at the bottom of the wizard shows previously run programs.



Selecting an item in the list populates all the details above as used on the last run for that program.



You can still edit those details before starting.



Full path instructionStep shows the full path to the executable in the list


Image Name instructionStep shows the short program name without path



Delete instructionStep removes a selected program from the list



Reset instructionStep clears all details in the wizard - including the list of previously run applications below





Data collection and redirection



Type of data collection instructionStep Are you only interested in Native data, .Net data or both Native data and .Net data?



Native Only instructionStep Ignore all .Net data in the target application.



.Net Only instructionStep Ignore all Native data in the target application.



Mixed Mode instructionStep Collect both Native and .Net data from the target application



This setting cannot be changed after the application is launched



Collect data from application instructionStep If it's the startup procedure you want to validate, obviously start collecting data from launch.



Depending on your application, and what you want to validate, you may want to start collecting data immediately, or do it later.



If your program has a complex start-up procedure, initialising lots of data, it may be much faster not to collect data until the program has launched.



seeAlsoSee the section on controlling data collection for how to turn collection on and off after launch.



Redirect standard output instructionStep Controls redirection of stdout and stderr



Use this option if you want to collect the output of stdout and stderr for later analysis.



Be aware that if the output of the program under test generates a lot of data via stdout or stderr that this data will need to be stored in memory and could exhaust Memory Validator's memory.



Display command prompt instructionStep Shows or hides the launched application.



If you are collecting stdout and stderr you may not be interested in viewing the application (or the command prompt if it is a console application). This provides you the option to hide the application when it is running.



Be aware that if you hide a command prompt you will not be able to type anything into the application.





The option to start collecting data is at the top.



Launch instructionStep start your program and attach Memory Validator to it



Double clicking a program in the list will also start it immediately.



Cmd Line... instructionStep display the command line builder





Administrator privileges in dialog mode



If administrator privileges are required, the Launch button will show the privileges icon reminding you of the need to restart.



admin-privileges-in-dialog-mode-go





Launch instructionStep shows the Administrator Privileges Required confirmation dialog before restarting

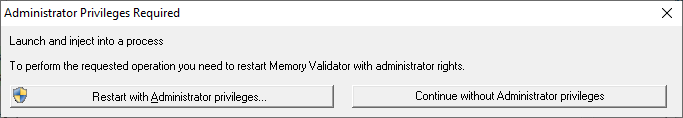

admin-privileges-required-dialog



If you started Memory Validator in administrator mode, you won't see any of these warnings, and everything will behave as normal.







How do I use Application to Monitor and Launch Count?



The three fields Application to Start, Application to Monitor and Launch Count work together to control which application actually gets monitored by Memory Validator.



Let's say we have a program P.



In the simplest case, simply:



start P

monitor P

the Launch Count defaults to 1 and cannot be changed.





If P launches an application and you just want to monitor whatever that is:



start P

monitor <<Any application that is launched>>

leave the Launch Count at 1





If P launches an application A and maybe others as well, and you specifically want to monitor only A as it's launched:



use the Application to Monitor settings to add a definition for P and child applications A

start P

monitor A

leave the Launch Count at 1





If P launches an application A many times and you specifically want to monitor the third invocation:



use the Application to Monitor settings to add a definition for P and child applications A

start P

monitor A

set the Launch Count to 3
