.Net Heap Dump Display Settings Dialog

Scroll Prev Top Next More

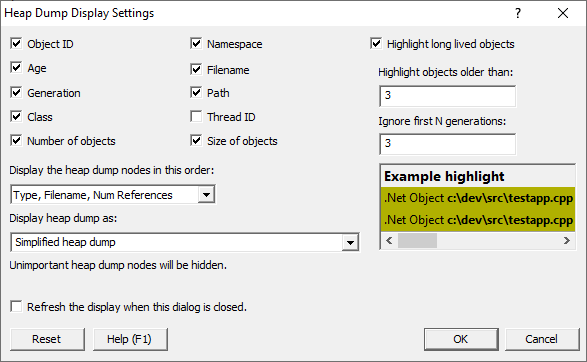

The Heap Dump Display Settings dialog allows you to manage how heap dumps are displayed, both visually and the content of the heap dump.



interactiveClick a part of the image below to jump straight to the help for that area.







heap-dump-display-settings-dialog





Data Display



Various attributes related to the each node can be displayed:



Object ID instructionStep Object ID.



 heap-dump-line-data-display-objectID



Age instructionStep How many garbage collections since this object was created.



 heap-dump-line-data-display-age



Generation instructionStep The generation this object was created in.



 heap-dump-line-data-display-generation



Class instructionStep The object class.



 heap-dump-line-data-display-class



Number of objects instructionStep The number of objects this object references.



 heap-dump-line-data-display-num-objects



Namespace instructionStep The object namespace.



 heap-dump-line-data-display-namespace



Filename instructionStep The source code filename and line number for the allocation location.



 heap-dump-line-data-display-filename



Path instructionStep The source code path for the allocation location.



 heap-dump-line-data-display-path



Thread ID instructionStep The thread id for the allocation location.



 heap-dump-line-data-display-threadID



Size of objects instructionStep The size in bytes of the number of objects referenced by this object.



 heap-dump-line-data-display-size-of-objects





Visual Highlighting



To aid identifying long lived objects that may be of interest when trying to find loitering objects that may be leaked you can highlight objects older than a specified age, and created after a specified generation. This allows you to ignore objects created during the startup phase of the application. A example of highlighting is shown below the highlighting controls.



Highlight long lived objects instructionStep Turn visual highlighting of loitering objects on / off.



Highlight objects older than instructionStep How old do you think an object needs to be for it get your attention?



Ignore first N generations instructionStep Enter the number of garbage collections it takes for your application to startup.

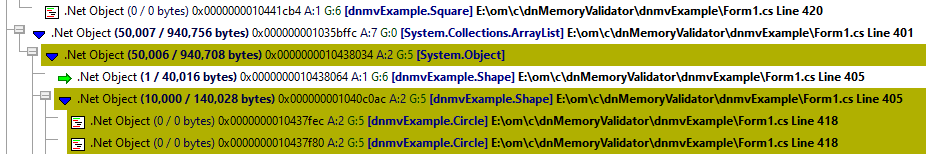

Highlighted objects look like this:



 heap-dump-example-highlighting





Data ordering



When choosing how to order the heap dump there are a few sorting options:



Num References, Type, Filename instructionStep Sort by Num References, then by Type, then by Filename.



Type, Filename, Num References instructionStep Sort by Type, then by Filename, then by Num References. This is the default option.



Filename, Type, Num References instructionStep Sort by Filename, then by Type, then by Num References.





Making the data easier to understand



Heap dumps can be very complicated to understand. The complexity is increased when there are objects present that don't really add to your understanding of the heap dump, but which are present all the same. We've provided some options to allow you to tailor the level of complexity to suit the task.

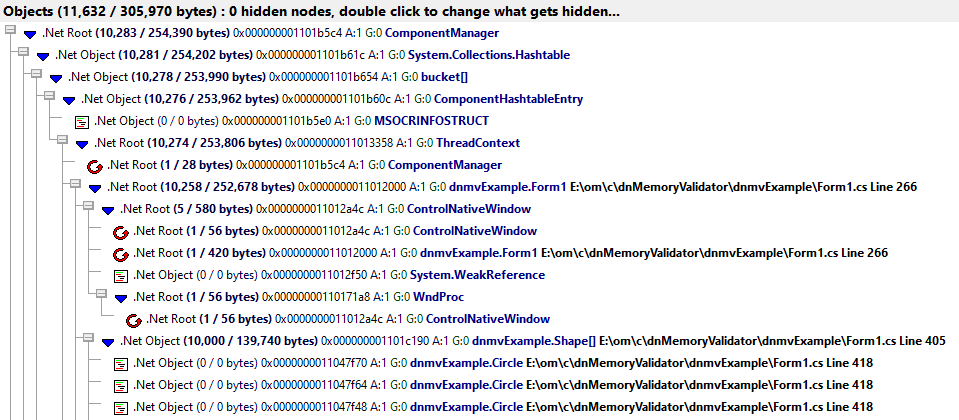

Full heap dump instructionStep Everything in the heap dump is shown.



 heap-dump-example-full

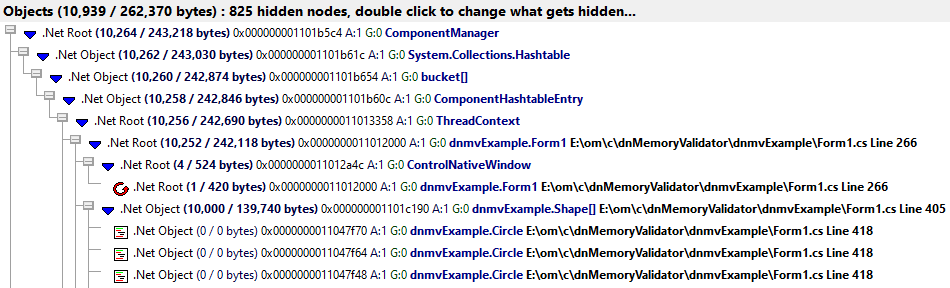

Simplified heap dump instructionStep Unimportant nodes in the heap dump are not shown. This is the default option.



What is classed as unimportant? Any node that references no other nodes and has no source code (CLR/.Net Frameworkd source code is not included) and any node that has reference nodes that are classed as unimportant.



 heap-dump-example-simplified

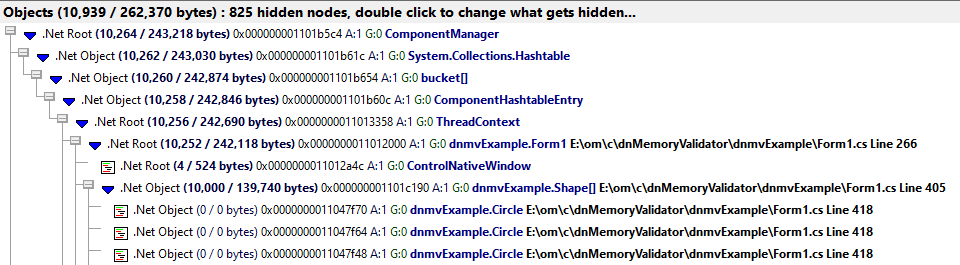

Over simplified heap dump instructionStep Unimportant nodes in the heap dump are not shown. Additionally some recursive nodes and some node links are not shown.



 heap-dump-example-over-simplified



The simplified heap dump is easier to display because less data is shown. It includes all recursive nodes and links to other nodes.



The over simplified heap dump has even less data and for many tasks may be easier to understand. But because the recursive nodes and links to other nodes are absent you may get an incorrect sense of the layout of the heap dump.



You need to use the over simplified heap dump with caution.





Auto display



Refresh the display when the dialog is closed instructionStep The display will be completely refreshed. Do not choose this option if you only wanted to change the visual highlighting or data display.
