Memory Validator Help



Searching for object allocations in functions



Using the Find Function dialog below, you can search for allocations occurring in certain functions.



The functions can be the allocating function or anywhere in the allocation callstack



This feature is very similar in behaviour to finding objects.





The find function dialog



To show the Find Function dialog, choose the menu option below:



menu Query menu instructionStep choose Find Function... instructionStep displays the Find Function dialog



Or use the following icon on the Query Toolbar.



toolbar-find-function





 query-function







Search criteria



Enter a function name, and optionally any other search characteristics to find objects allocated in matching functions



Function instructionStep enter full or partial function name



Match case instructionStep tick to do a case-sensitive match



Complete function name instructionStep tick to only match the whole name



 note For C++ methods, complete names must be of the form classname::methodname.



Trace locations instructionStep matches only the function containing the allocation



Callstacks instructionStep matches any function in the allocation callstack





Allocation types



As well as allocations you can search for reallocation and/or deallocation events:



Allocated instructionStep search for allocations


Reallocated instructionStep search for reallocations


Deallocated instructionStep search for deallocation events




Finding results



Find instructionStep performs the search displaying results in the list


Results replace any previous search, unlike querying addresses or objects where the results are added to the list.



You can expand the search results, and double click the data items to edit source code in your preferred editor.








Examples of finding allocations in functions



Memory Validator has an example program you can use to safely explore features.



In the example program, the Allocation menu has an option Test Many Hooks at once.



After doing that, the example searches can be made below.

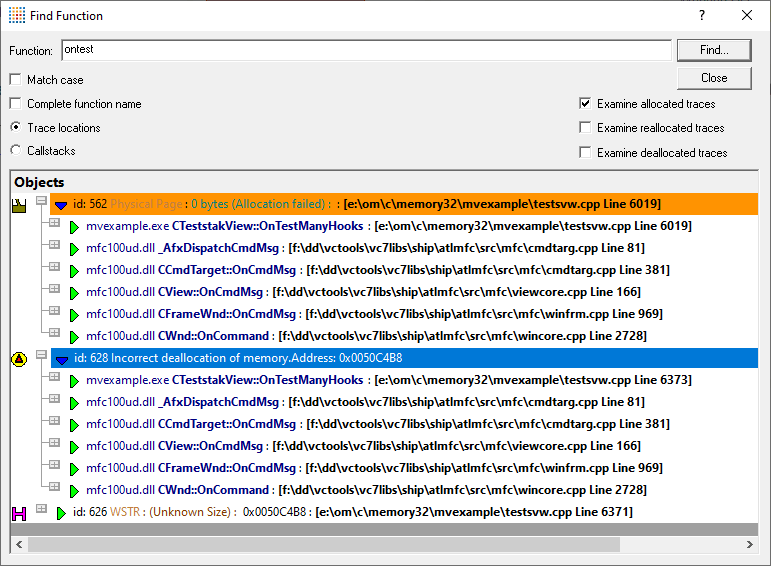

Searching only within matching functions



Searching for allocations only in functions that have ontest as part of their name finds these results in CTeststakView::OnTestManyHooks



query-function-example2

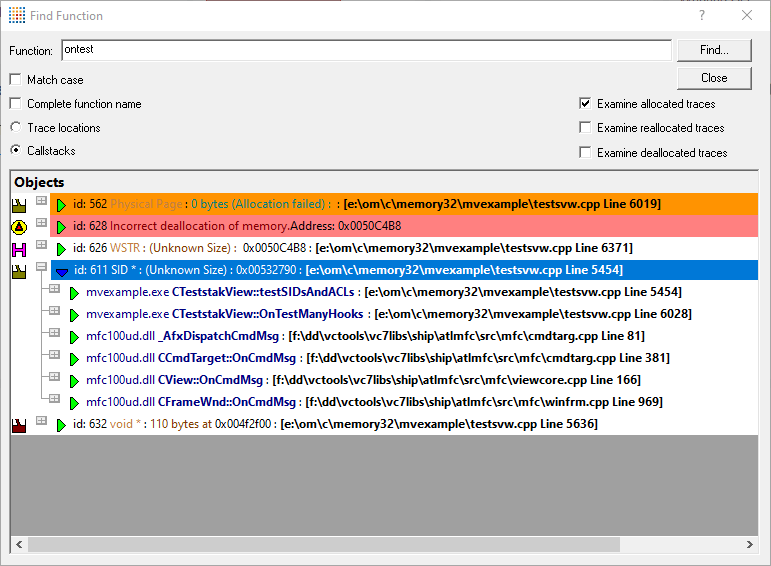

Searching anywhere in the callstack



Keeping the same function name but now searching in any part of the callstack additionally finds two more allocations in functions underneath CTeststakView::OnTestManyHooks





query-function-example1
