Monitoring ASP.Net Application (IIS)



To start monitoring ASP.Net application running in IIS:



Launch menu Services Monitor IIS and ASP.Net... shows the Start ASP.Net Application dialog below



Or use the shortcut



   Monitor IIS and ASP.Net

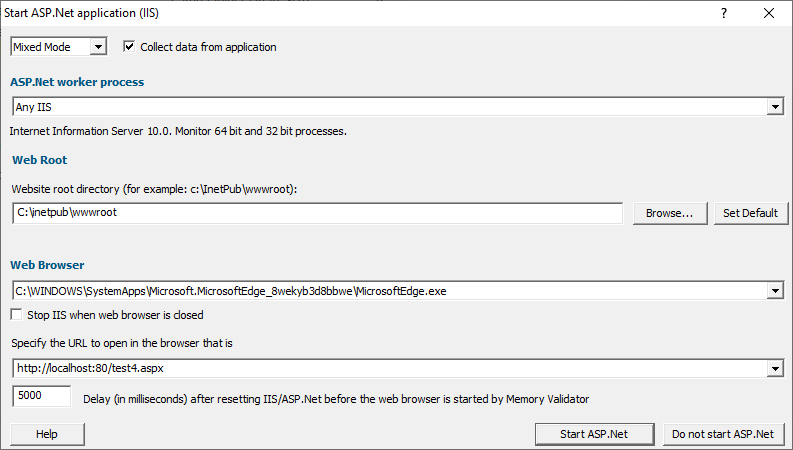

The Start ASP.Net application dialog



Set the asp worker process, the web root, an optional web browser to use and an optional url to launch, and click OK.







•ASP.Net worker process select the IIS process we're working with. This can be any ASP.Net process or a specific one. The default is Any IIS.


•IIS web type or Browse to set the web root for the IIS website we're working with


•Web Browser select the web browser that you're going to use to load the web page


•URL to open in browser type the web page and arguments you want to load to cause the ISAPI to be loaded in IIS



•Start ASP.Net resets IIS, setups all the variables, copies DLLs and settings into the web root and starts the web browser to load the specified web page



IIS is a protected process and can only execute, read and write files in specific directories. That's why Memory Validator copies data to the web root so that it can be read, written or executed.





Data collection



•Type of data collection Are you only interested in Native data, .Net data or both Native data and .Net data?



•Native Only Ignore all .Net data in the target application.



•.Net Only Ignore all Native data in the target application.



•Mixed Mode Collect both Native and .Net data from the target application



This setting cannot be changed after the application is launched



•Collect data from application If it's the startup procedure you want to validate, obviously start collecting data from launch.



Depending on your application, and what you want to validate, you may want to start collecting data immediately, or do it later.



If your program has a complex start-up procedure, initialising lots of data, it may be much faster not to collect data until the program has launched.



See the section on controlling data collection for how to turn collection on and off after launch.





Slow Startup



The first time you work with IIS and Memory Validator you may experience a delay during startup. This is most likely because symbols are being downloaded from Microsoft's symbol servers to match the DLLs and assemblies on your machine.
