Source code editing



The editing settings let you set an editor of your choice to view or edit source code. Bug Validator's built-in editor is one of those options.



The built-in editor can be started in several ways:



left_mouse_buttonDouble click on a source code fragment (e.g. in the Execution History)


right_mouse_buttonpopup menu instructionStep Edit Source Code...


menu Tools menu instructionStep Edit Source Code...





Using the built-in editor



The built-in editor supports the basic operations expected for editing source code:



The highlighting is identical to that in the source code views of the main tabs:



The lines in green (for this colour scheme) have been visited


Lines that have not been visited are displayed in pink


Lines with a green tick next to them indicate that they have been successfully hooked


Lines that could not be hooked have a red cross against them


An arrow indicates the source code line of interest when the source code editor was displayed





 sourceCodeEditor





menu File menu



The file options need no explanation:



source-code-editor-file-menu



menu Edit menu

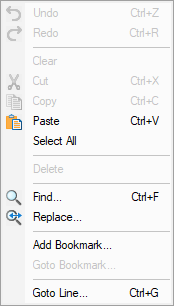

All the following edit options should also be familiar:



source-code-editor-edit-menu



Undo/Redo is unlimited by default, but this can be changed in the options below.





menu Formatting menu

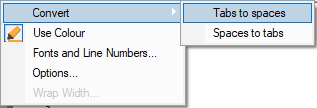

The formatting menu has general display and editing options



source-code-editor-formatting-menu



Convert instructionStep Tabs to spaces instructionStep turns all tabs into spaces

Convert instructionStep Spaces to tabs instructionStep turns all spaces into spaces


Use Colour instructionStep toggles the colour coded display

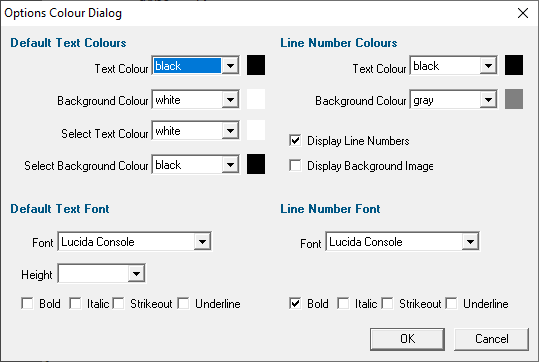

Fonts and Line Numbers... instructionStep change text colours, fonts and line numbers


source-code-editor-fonts

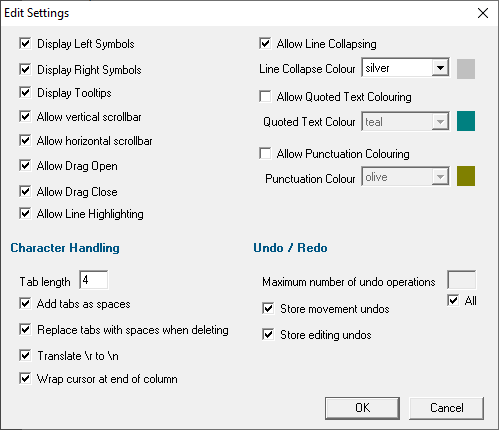

Options... instructionStep set tab length and other options


source-code-editor-options



Wrap Width... instructionStep changes the column width at which lines will wrap in the display





Status bar



The status bar shows help text at the bottom as you hover over menu and toolbar options.



To the right of the status bar are insert mode, column number and line number.





Line collapsing



You can temporarily collapse sections of code as follows:



left_mouse_buttonLeft click in the margin to start the section instructionStep Drag to define the length instructionStep Release to set the end of the section



Click anywhere on the resulting indicator to collapse, and on the + to expand a section.



Expanded:



source-code-editor-line-collapsing



Collapsed:



source-code-editor-line-collapsed





noteLine collapsing is temporary and not remembered between edit sessions.
