Colour coded source code editor

Scroll Prev Top Next More



Source code editing



The editing settings let you set an editor of your choice to view or edit source code. Thread Validator's built-in editor is one of those options.



The built-in editor can be started in several ways:



double click on a source code fragment in one of the views


right_mouse_buttonpopup menu instructionStep Edit Source Code...


menu Tools menu instructionStep Edit Source Code...

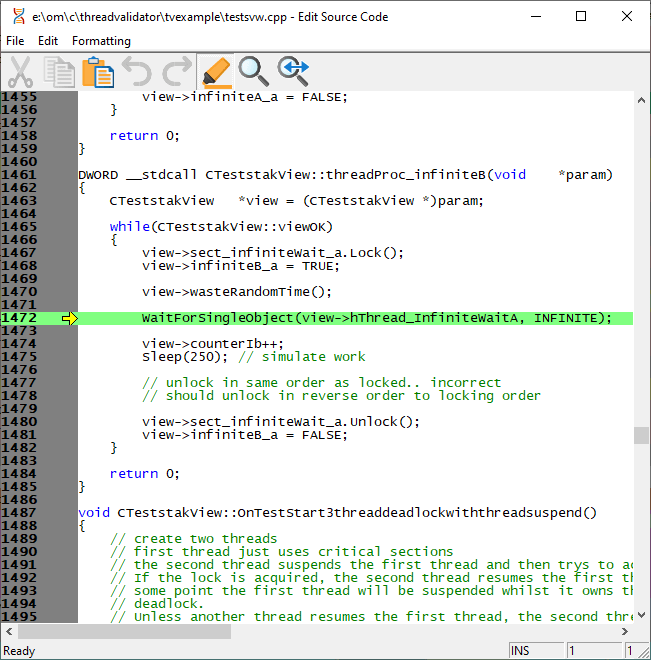

Using the built-in editor



The built-in editor supports the basic operations expected for editing source code:



source-code-editor





File menu



The file options need no explanation:



source-code-editor-file-menu

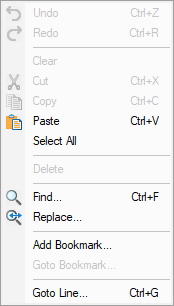

Edit menu



All the following edit options should also be familiar:



source-code-editor-edit-menu



Undo/Redo is unlimited by default, but this can be changed in the options below.



note Editing bookmarks has nothing to do with Thread Validator's own bookmarks.

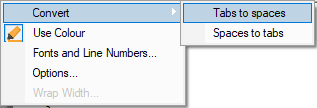

Formatting menu



The formatting menu has general display and editing options



source-code-editor-formatting-menu



Convert instructionStep Tabs to spaces instructionStep turns all tabs into spaces

Convert instructionStep Spaces to tabs instructionStep turns all spaces into tabs


Use Colour instructionStep toggles the colour coded display

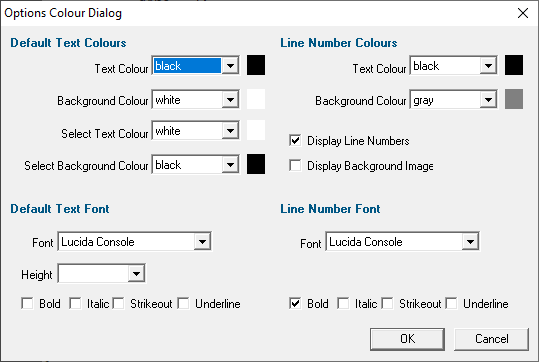

Fonts and Line Numbers... instructionStep change text colours, fonts and line numbers


source-code-editor-fonts

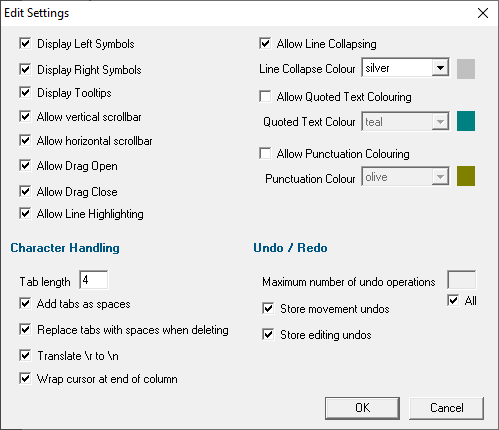

Options... instructionStep set tab length and other options


source-code-editor-options



Wrap Width... instructionStep changes the column width at which lines will wrap in the display





Status bar



The status bar shows help text at the bottom as you hover over menu and toolbar options.



To the right of the status bar are insert mode, column number and line number.





Line collapsing



You can temporarily collapse sections of code as follows:



Left click in the margin to start the section instructionStep Drag to define the length instructionStep Release to set the end of the section



Click anywhere on the resulting indicator to collapse, and on the + to expand a section.



You'll need to drag near the middle of the empty grey area, as not all of the margin is active.

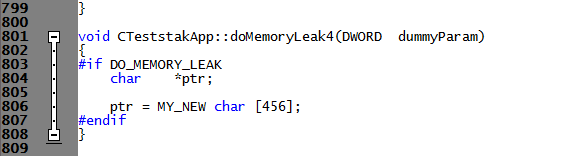

Expanded:



source-code-editor-line-collapsing



Collapsed:



source-code-editor-line-collapsed





noteLine collapsing is temporary and not remembered between edit sessions.
