Performance Validator Help



The Symbol Servers tab allows you to specify Symbol Servers to retrieve symbols used in your application.



note You do not need to specify symbol servers if you do not wish to, and Performance Validator will work correctly without them.



interactiveRead on, or click a setting in the picture below to find out more.

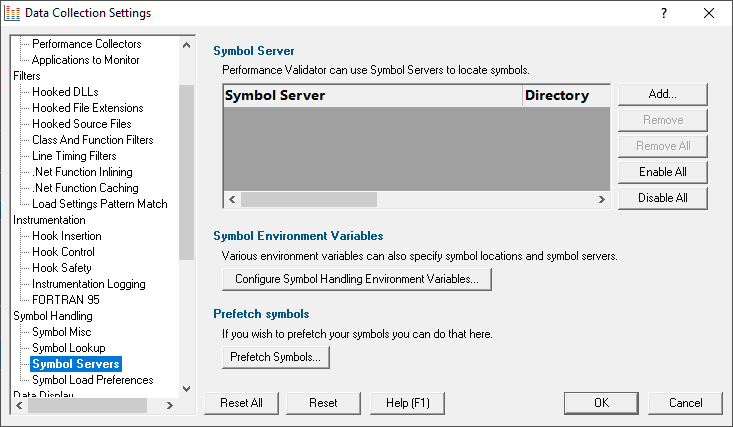

symbol-server-settings





Symbol servers



Symbol servers are entirely optional, but are useful for obtaining symbols from a centralized company resource or for obtaining operating symbols from Microsoft.



The default symbol server is the Microsoft symbol server used for acquiring symbols about Microsoft's operating system DLLs. You may also wish to add some symbol servers for any software builds in your organisation.



A symbol server is defined by at least the following:



the symbol server dll to be used to handle the symbol server interaction

a directory location where symbol definitions are saved

the server location - a url



Each symbol server can be enabled or disabled allowing you to keep multiple symbol server configurations available without constantly editing their definitions.



You can define up to four symbol servers and more than one can be enabled at a time.





Managing symbol servers



Add... instructionStep displays the symbol server dialog described below


Remove instructionStep remove selected symbol server(s) in the list

Remove All instructionStep remove all symbol servers



Enable All instructionStep enables all symbol servers in the list

Disable All instructionStep disables all symbol servers



You can also enable or disable an item in the list via the yellow check box at the left of each row.



To edit the details for a symbol server, just double click the entry in the list to show the symbol server dialog again.





Symbol server dialog



The dialog initially appears pre-populated with some default values and allows you to set up or edit the definition of a symbol server. Some of the default values can be changed.

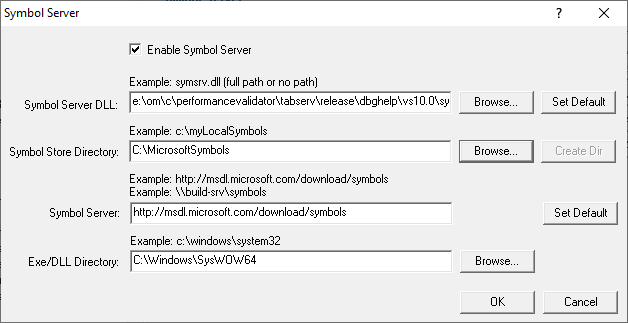

symbol-server-dialog





Enable Symbol Server instructionStep enable or disable this server



The following three entries must be set to enable the OK button and define the symbol server.



doc-expand-icon OK button not enabled? The OK button will only be enabled when the following entries have a valid value:

- Symbol Server DLL names a dll present in the Memory Validator install directory.
- Symbol Store Directory has been specified and exists.
- Symbol Server URL has been specified (this value will not be checked for correctness).



Symbol Server DLL instructionStep enter or Browse to specify the name of the DLL (with or without path) that will be handling the symbol server negotiation



Typically this is symsrv.dll, but If you have your own custom DLL implementation you should enter that and ensure that a copy of the DLL is present in the Performance Validator installation directory.



Set Default instructionStep uses the current entry as the default next time the dialog is opened





Symbol Store Directory instructionStep enter or Browse to set the directory that will contain local copies of the downloaded symbols



Create Dir instructionStep creates a directory if you entered a directory name that does not exist yet





Symbol Server instructionStep enter the URL of the symbol server you wish to use - the Microsoft server is initially set as the default



Set Default instructionStep uses the current entry as the default next time the dialog is opened



You can optionally associate a directory to scan when you are getting symbols (below)



Exe/DLL Directory instructionStep specify the directory to scan for symbols





Environment variables related to symbols



If you wish, you can set some environment variables to supply symbol paths.



Configure Symbol Handling Environment Variables instructionStep opens the dialog below



Check the desired options - if any.

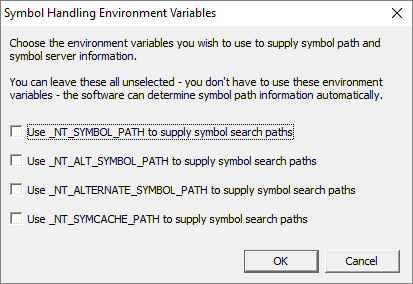

symbol-handling-environment-variables









Pre-fetching symbols



To avoid delays when using symbol servers, you can trigger the retrieval of symbols (by running SymChk.exe) to collect symbols for all executable files specified in the exe/dll which you associated with each symbol server.



Prefetch Symbols... instructionStep open the Prefetch Symbols dialog below to continue

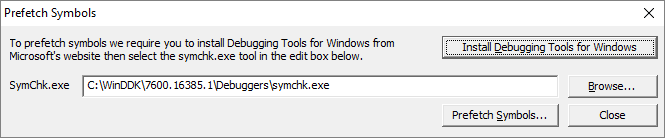

prefetch-symbols-dialog





Prerequisites for pre-fetching symbols



The pre-fetching of symbols requires the installation of Microsoft's Debugging ToolsexternalLink.



noteYou may already have Debugging Tools if you've previously installed the Windows Driver Kit (DDK or WDK) or the Windows SDK.



Install Debugging Tools for Windows instructionStep opens a web page (as above) to download and install the x86 or x64 Debugging Tools for Windows



After installing the Debugging Tools, you must specify the location of SymChk.exe from the installed area.



SymChk.exe instructionStep enter or Browse to SymChk.exe location



 A typical path might be C:\WinDDK\7600.16385.1\Debuggers\symchk.exe





Getting the symbols



note Note that prefetching symbols may consume a large amount of disk space and download bandwidth.



You should ensure that you have at least 2 or 3Gb of disk free space, because of the total size of the download packages.



Prefetch Symbols... instructionStep runs SymChk.exe to get all the symbols



The symbols for each symbol server are stored in the associated symbol store directory.



note If no symbol servers are specified in the symbol server settings above, you'll see a warning dialog and no symbols will be fetched.





Command line pre-fetching of symbols with the SymChk utility



The section on Pre-fetching symbols above is a convenient alternative to manually using the SymChk,exe utility.



To avoid delays when using symbol servers, you can pre-fetch symbols using the SymChk.exe command line tool that is part of Microsoft's Debugging ToolsexternalLink.



You may want to add the folder of the Debugging Tools for Windows package to the PATH environment variable on your system so that you can access this tool easily from any command prompt.



Example:



To use SymChk.exe to download symbol files for all of the components in the c:\windows\System32 folder, you might use the command:



 symchk.exe /r c:\windows\system32 /s SRV*c:\symbols\*http://msdl.microsoft.com/download/symbols



where

/r c:\windows\system32 finds all symbols for files in that folder and any sub-folders


/s SRV*c:\symbols*http://msdl.microsoft.com/download/symbols specifies the symbol path to use for symbol resolution.


In this case, c:\symbols is the local folder where the symbols will be copied from the symbol server.



seeAlsoTo obtain more information about the command-line options for SymChk.exe, type symchk /? at a command prompt.



Other options include the ability to specify the name or the process ID (PID) of an executable file that is running.





Reset All - Resets all global settings, not just those on the current page.





Reset - Resets the settings on the current page.
