Performance Validator Help



The Call Graph view displays the performance data as a hierarchical tree, similar to the Call Tree.



interactiveRead on, or click a part of the image below to jump straight to the help for that area.

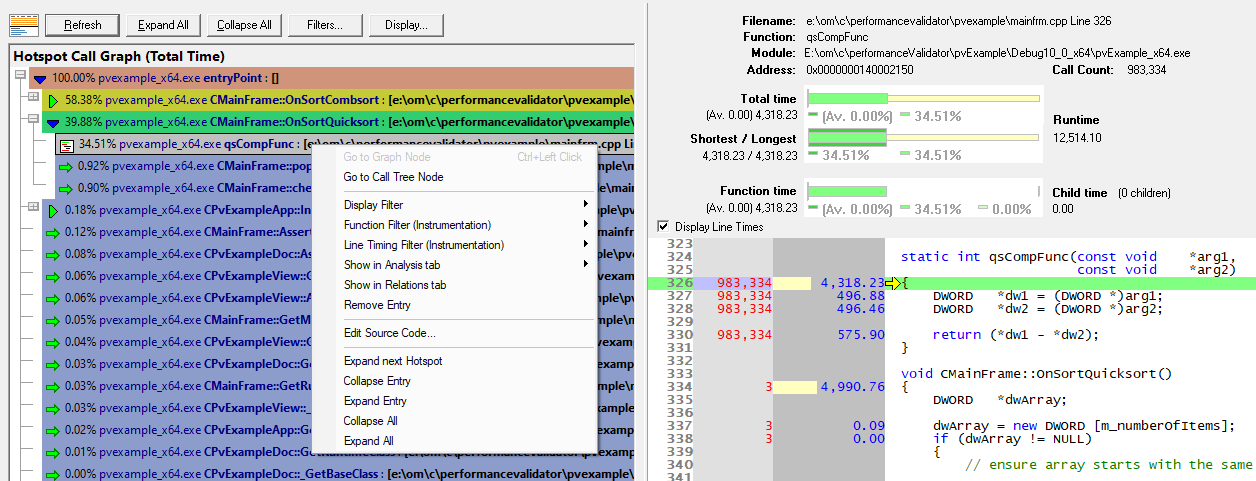

call-graph-tab





As with many of the tab views, the display is split into two resizable panes.



the left side shows an ordered hierarchical view of the functions called in the program's execution



The graph's popup menu provides options to filter data or to examine it in more detail


The right side shows the source code view for any function selected on the left





The call graph view



Performance data is shown in an ordered graph for every function that has been hooked and called.



Functions are initially ordered by Total Time - the time a function and its child functions contribute to the total run time.



Child functions that get called will appear as child nodes in the graph; just expand a node to dig deeper.



Selecting a function shows its source code on the right hand pane.



Double clicking any item will display the function on the Relations tab.



Functions in the graph may display one of the following icons:



linked  Function is not the main instance but links to its main node in the graph via the menu options


recursive  Function call is recursive



note Note that while your application is executing, the data is live and may not show correctly, for example some percentages may be large. Only when your program has finished executing is the data guaranteed accurate.





The call graph vs the call tree



In a call tree the same hierarchy of functions and their children can appear in multiple locations if called by different parent functions.



In a call graph that hierarchy can only appear once. There will be one main instance and multiple links to it from other locations in the graph.



The main instance will detail timings as a combined total for everywhere that a function is used.



This is as opposed to a call tree where function timings are for the time spent only in the callstack that leads to the node.



This is demonstrated in the following example where...



Functions P and Q both call B which in turn calls C


Function R calls C directly

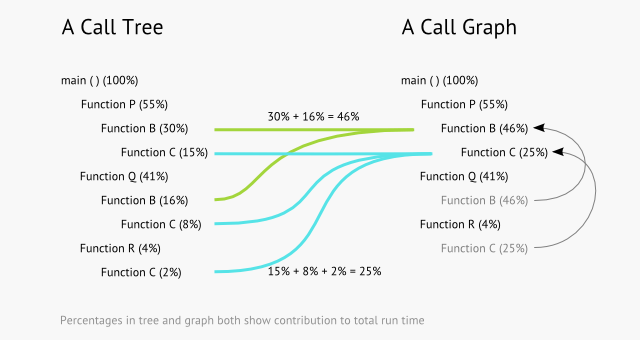

The call tree on the left below shows different timings for each of the 2 calls to B, and the 3 calls to C. These are the contributions from the different callstacks.



In the call graph all the times are summed together.



The call graph shows one main instance for B and C, and although there are other entries for functions B and C, all those do is link to the main instance.



call-tree-vs-call-graph1

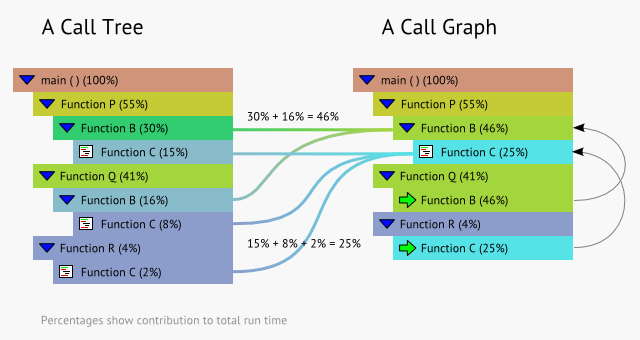

In Performance Validator these examples might appear as below, with the tree and graph both coloured according to Total %.



call-tree-vs-call-graph





Window orientation



To adapt to your screen layout, the horizontal or vertical orientation of the call graph and source code panes can be toggled with the orientation button.



orientation1                 orientation2





Updating the display



Refresh instructionStep updates the display with the called functions and performance data - as does the refresh button on the Tools menu and toolbar



A refresh automatically expands the first nodes in the graph and highlights the most time consuming low-level function.



As there's no auto update here, you'll need to use this Refresh button to update the display when you wish.



Collapse / Expand All instructionStep hide or show every node in the graph

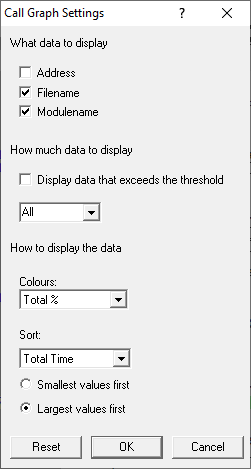

Display... instructionStep shows the Call Graph Display Settings dialog



 callgraph-display-settings-dialog





Call graph colours



The graph is coloured using the customisable Hotspot Colours settings that range from 100% down to 0%.



hotspot-colours



Colours instructionStep choose the way the colour scheme is applied in the graph



Total % instructionStep colouring is based on function time relative to the total execution time

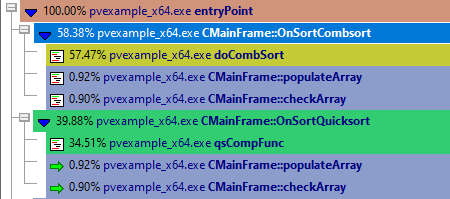

qsCompFunc is in the 30-40% colour band as it contributed 34.51% to the total run time


doCombSort is in the 50-60% colour band as it contributed 57.47% to the total run time



call-graph-cols



Total % Scaled instructionStep similar to Total % but relative to the total time attributed to the function's top level node in the graph



This colour scheme 'stretches' its range to use the full range of colours under each top level node.


Multi-threaded programs may have multiple roots, and the sampling data collection mode may also result in multiple roots, since sample callstacks won't always join up.



note Colours cannot be compared between different top level nodes as they may each be responsible for very different contributions to the program's total run time.

note If there is only one top level node, the two colour schemes will be identical.



No Colour instructionStep black and white display only




Sorting the data



The graph is initially ordered by most time consuming function first (Total Time)



Sort instructionStep choose one of the criteria from the list instructionStep Refresh the display



   The options are:



Total Time instructionStep the time all calls to a function and its child functions contribute to the total run time


Average Time instructionStep the time an average call to a function and its child functions contribute to the total run time


Call Count instructionStep the number of times a function appears in the sampled collection data



  note When in sampling mode, Call Count will be the only available option here



Ascending / Descending instructionStep change the ordering direction of the data



note Note that while your application is executing, the sorted data is live. Sorting may not complete correctly as the data may change during the sort. Only when your program has finished executing is the sorted data guaranteed accurate.





Managing the data being displayed



There are three ways to change what's displayed in the view.



Change the amount of detail shown for each function:



Address instructionStep check to show the address in memory for the function



Filename instructionStep check to show the file location in which the function was found



Modulename instructionStep shows the function's module





Reduce the scope of the graph by hiding less significant functions:



Threshold instructionStep set a percentage threshold below which contributing functions are hidden



Higher numbers exclude more nodes.



note You'll need to do a manual Refresh to update the display


note By default the threshold applies to the top level functions only.



The threshold percentage is based on a functions accumulated contribution to the total runtime or total number of function calls.



The default All option includes all nodes.



Apply Threshold to Children instructionStep check to hide any function (as opposed to just top level nodes) in the graph that lie below the threshold contribution





Alternatively, filter out unwanted functions, or only show specific functions of interest.





Filtering data in the tables



The display filters affect what functions are hidden and shown in the call graph. They do not affect which functions are hooked in the first place.

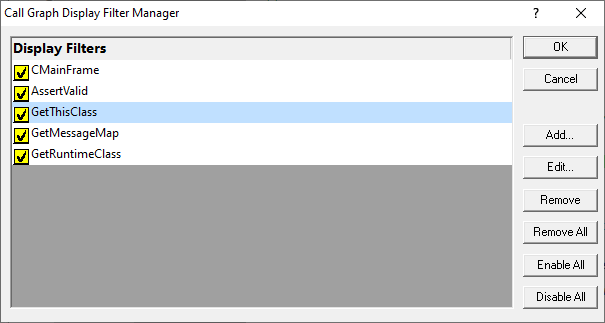

Filters instructionStep shows the Call Graph Display Filter Manager:



display-filter-dialog-call-graph



The dialog initially has no items in the list. Add some items manually or use the convenience filter options on the popup menus.



Add... instructionStep displays the display filter dialog described below


Edit... instructionStep opens the display filter dialog populated with the selected item's criteria, ready for editing


Or double click an entry in the list to show the filter dialog.



Remove instructionStep remove selected filter(s) in the list

Remove All instructionStep remove all filters



Enable All instructionStep enables all filters in the list

Disable All instructionStep disables all filters



You can also enable or disable individual items in the list via the yellow check box at the left of each row.



Invert Filters instructionStep leave unchecked to remove matched items from the display, or check to keep only matched items



Inverting filters is a powerful way to remove unwanted 'noise' in the data displayed, and to focus tightly on specific criteria



note Take care when removing inverted filters as clearing the list and leaving inverting filters checked will leave no functions being displayed at all!





The Display Filter dialog



The dialog below allows you to create a filter based on matching one or more criteria.



display-filter-dialog



If you don't enter some of the details, they simply won't form part of the match criteria



Enabled instructionStep set this particular filter active or inactive



This is exactly equivalent to checking the listed item in the display filter manager



Class instructionStep enter the class name that the filter must match



If you enter a class but no method name then all functions in the class are filtered


Method instructionStep enter the method name



If you enter a method but no class then the filter will match for the named function in any class



Filename instructionStep filter all functions in the specified file



The full path to the file is required.



Directory instructionStep filter all functions in the specified directory



The full directory path is required.



Module instructionStep filter all functions in the specified module



The full path to the module is required.



Address instructionStep filter an exact address in memory





Finding text



To find text in the graph, use the Find Dialog where you can search for functions, files and modules.



seeAlsoThe source code view has its own Find and Goto dialogs.





Call graph menu optionsright_mouse_button

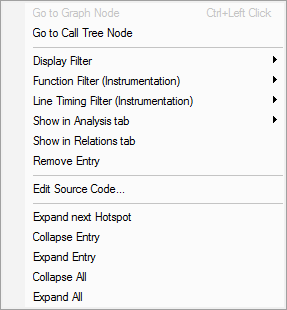

The following popup menu is available over the graph to add filters, examine relations or edit code.



Menu actions apply to the function in the graph at the menu-click location.



call-graph-menu





right_mouse_buttonMenu options: Graph node



Functions may be linked to their main instance from multiple locations if called by different parent functions.



Go to Graph Node instructionStep jump to the main instance of this function in the graph



b_ctrl +left_mouse_buttonhas the same action



If the selected function is already the main instance, this option will be disabled.





right_mouse_buttonMenu options: Call tree



The Call Tree view is similar to the Call Graph, but a function and its children can appear multiple times.



The times shown in a call tree are related to the relevant callstack rather than being an accumulated total time.



Go to Call Tree Node instructionStep open the Call Tree view at the first entry for the selected function





right_mouse_buttonMenu options: Display Filter



The display filter sub-menu below provides a quick and convenient way to hide or show data based on attributes of the selected item.



statistics-menu-display-filter



Choosing any of these options will add the filter to the Display Filter dialog.



For example:



Class instructionStep hides all functions belonging to the same class


FileName instructionStep hides all functions that were in the same file







right_mouse_buttonMenu options: Function filter (Instrumentation)



While the display filter controls visibility of hooked data, instrumentation filters control which functions are hooked in the first place.



The function instrumentation filter sub-menu lets you add hook filters at different levels of granularity.



statistics-menu-instrumentation-filter



note The affect of adding function filters here depends on the current filter settings:



If the current filters are set to hook everything, adding new filters will switch to excluding newly selected hooks


Otherwise, the current filter will be retained, i.e. hook or don't hook newly selected items





The first three options add filters to the Class and Function Filter Settings:



By Class instructionStep adds a new filter, excluding the entire class from the results of subsequent sessions


By Class and Method instructionStep excludes only the selected function from new sessions


By Function instructionStep excludes all matching function names irrespective of their containing class or even if not in a class at all




The next two, Filename and Directory, are part of the Source Files Filter settings.



By FileName instructionStep adds a new filter, excluding all functions in the same file (as the selected item) from the results of subsequent sessions


By Directory instructionStep excludes functions in all files in the same directory as the selected function




Finally, the DLL level is controlled by the Hooked DLLs settings.



By DLL instructionStep excludes functions in all files belonging to the same executable or DLL as the selected function




note Instrumentation filters become effective at the start of the next session. Adding a filter during a session will show the relevant rows in grey so that you can see which files would be filtered, but the performance data will continue to be included for the rest of the current session.





right_mouse_buttonMenu options: Line timing filter (Instrumentation)



Line timing instrumentation filters control which lines are hooked for line timing and are independent of the function filters above.



note The affect of adding line timing filters here depends on the current line timing filter settings:



If the current filters are set to hook everything, adding new filters will switch to only including newly selected hooks



Note that this is the opposite of function filters.


Otherwise, the current filter will be retained, i.e. hook or don't hook newly selected items



The line timing instrumentation filter sub-menu lets you add hook filters at three different levels of granularity.



Each option add filters to the Line Timing Filter Settings:



By Class instructionStep adds a new filter, appending the entire class in the line timing results of subsequent sessions


By Class and Method instructionStep include only the selected function in the line timing of new sessions


By Function instructionStep includes all matching function names irrespective of their containing class or even if not in a class at all


note Instrumentation filters become effective at the start of the next session. Adding a filter during a session will show the relevant rows in grey so that you can see which files would be filtered, but the performance data will continue to be included for the rest of the current session.





right_mouse_buttonMenu option: Show in Analysis tab



The Analysis tab shows results of a query on the call tree based on the selected function and the criteria chosen from the menu:



Show in Analysis tab instructionStep choosing any item in the following sub-menu, to be switched to the Analysis tab



statistics-menu-show-in-analysis



For example:



Class instructionStep the Analysis tab will show all points in the call tree that match the class of the selected function


File name instructionStep shows all points in the call tree that match the file name of the selected function



Slower Functions (%) instructionStep shows all functions that are slower than the selected function





right_mouse_buttonMenu options: Show in Relations tabs



Show in Relations tab instructionStep switch to the Relations tab where you can examine functions that either call, or are called by, the selected function



Double clicking any item will also display it in the Relations tab.





right_mouse_buttonMenu options: Remove entry



You can hide some entries from the Call Graph display.



Hiding entries is a very temporary action since a function and its children will only be hidden from view until the next Refresh.



Remove entry instructionStep hides the selected function in the graph



Only the selected node is hidden. Other calls to the same function in a different part of the call graph will remain.





right_mouse_buttonMenu option: editing source code



Edit Source Code... instructionStep opens the default or preferred editor to edit the source code





right_mouse_buttonMenu options: Expand and collapse



The last few menu options expand and collapse parts of the graph.



Expand Next Hotspot instructionStep finds the next most significant performance hotspot in the call graph and expands all the callstack nodes to make it visible



Collapse / Expand Entry instructionStep close or recursively open the selected function to its full extent



Collapse / Expand All instructionStep completely collapse or expand the entire graph





The file source code view



Clicking on a function in the call graph shows that function's source code file in the right hand pane.



The source code view is described in detail separately as its behaviour is the same for all views.
