Command Line Builder

Scroll Prev Top Next More



The command line builder helps you create command lines with valid options.



The command line builder is a two stage process, the first stage helping your choose how you want to build the command line, and the second stage actually building the command line based on the choices in the first stage.

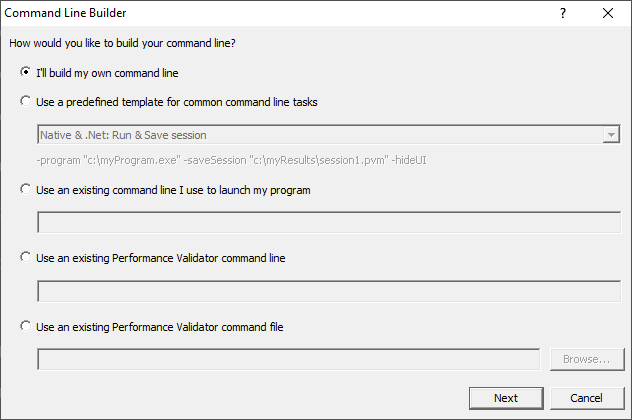

 commandLineBuilder-choose-how-build





There are five options for building your command line:



I'll build my own instructionStep you'll build your command line from scratch, with no predefined options



Use a predefined template instructionStep choose from a list of predefined command lines that you can customize



 The predefined templates cover a range of tasks you may want to perform from the command line. These include running sessions, saving sessions, exporting to HTML, XML, and comparing performance data.



 Examples are provided for both Native and .Net applications, and .Net Core applications.



Use an existing command line instructionStep use the command line you use to start the tool you want to collect profiling data for



 Example: e:\dev\paintpot\release\paintpot.exe e:\testimages\venn.png -invert -mirror -phaseChange



Use an existing Performance Validator command line instructionStep use an existing Performance Validator command line and customize that



 Example: -program e:\dev\paintpot\release\paintpot.exe -hideUI -exportAsHTML e:\testResults\gannt.html -allArgs e:\testimages\gantt.png -inflate:3


Use an existing Performance Validator command file instructionStep use an existing Performance Validator command file and customize that



 Example: -commandFile e:\commandFiles\paintpot_gantt.cf





When you have made your choice the Next button moves you to the customization part of the command line builder.

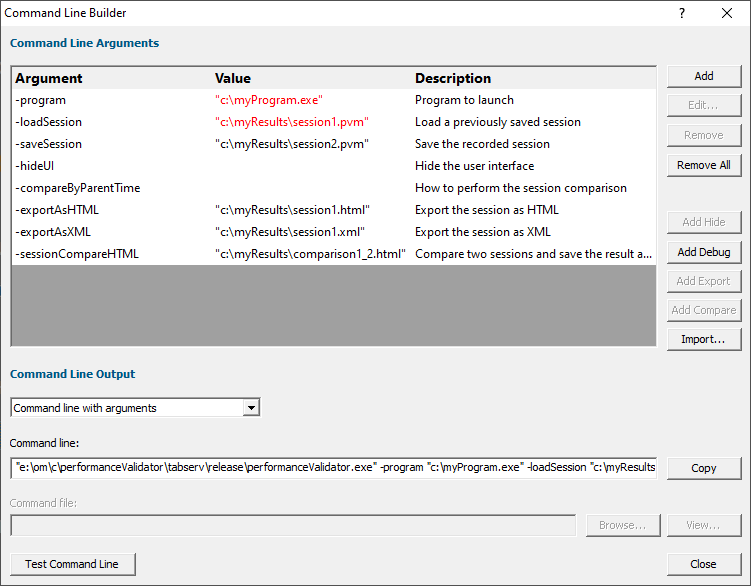

 commandLineBuilder-customization





The image above shows the command line builder populated with one of the predefined template choices. You can see a few entries refer to directories and files that do not exist on disk (they are red).

These are items you will need to customize to match the program you are testing.

For example, the -loadSession session will need to have been created (by saving an appropriate session from Performance Validator) created before you run the test.

Any entries that will only exist after they have been created by the test will also be shown in red.



Editing



To edit an argument, double click the argument. A combo box will display a list of valid arguments you can choose.

To edit a value, double the value. If the argument type has a list of known values a combo box will be provided, directories will display a directory chooser, files will display a file chooser, numbers will only allow numeric editing. All other values will be edited as text.


Add instructionStep add a new argument to the grid



Remove instructionStep remove the selected item



Remove All instructionStep removes all items in the grid



Add Hide instructionStep adds a -hideUI argument which will cause Performance Validator to hidden when running. Performance Validator will close after the target program finishes running



Add Debug instructionStep adds various arguments which will cause Performance Validator to display error messages if there are problems with the command line.



Add Export instructionStep adds export options that will cause Performance Validator to export html and/or xml reports after the target program finishes running



Add Compare instructionStep adds compare options that will cause Performance Validator to load a session and compare sessions after the target program finishes running



Import... instructionStep you can import a command file, the contents of which will replace all the items in the grid




Command Line Output



There are two command line output styles.



Command line with arguments instructionStep generates a command line containing all arguments and values shown in the grid



Command line with command file instructionStep generates a command file containing all arguments and values shown in the grid, and a command line that references the command file



 When this option is chosen the command file edit field and the Browse... and View... buttons are enabled, allowing you to specify a command file name, and to view it's contents.



 If a command file has not been specified when this option is selected you will be prompted to select a name for the command file.

 When the command file name is selected the command file will be created with the arguments and values shown in the grid.



Copy instructionStep copies the command line to the clipboard so that you can paste the command line in cmd prompts, batch files and automated scripts (Jenkins etc)



Browse... instructionStep opens a Windows file dialog to allow you to specify the command file location



View... instructionStep opens the command file using the Windows shell, this allows you to view the command file in your favourite editor





Testing



If you wish to test the command line, you have two options:



Manual test instructionStep use the Copy button to copy the command line, then paste it into a cmd prompt and press return.



Test Command Line instructionStep a new instance Performance Validator is started with the specified command line.
