Memory Validator Help

Garbage collected programs, in theory, never leak memory. In practice that isn't the case, which is probably why you're using Memory Validator.



If references to objects are not reset to null the garbage collector will not collect the object, even if it will never be used again by the program. Such conditions are hard to detect even with tools like Snapshots and Heap Dumps.



To aid in this task we've created a dedicated .Net leak analysis query facility where you can use predefined queries or design your own query.



Each query is formed from five factors and the display of the results allows for a range of filtering options.

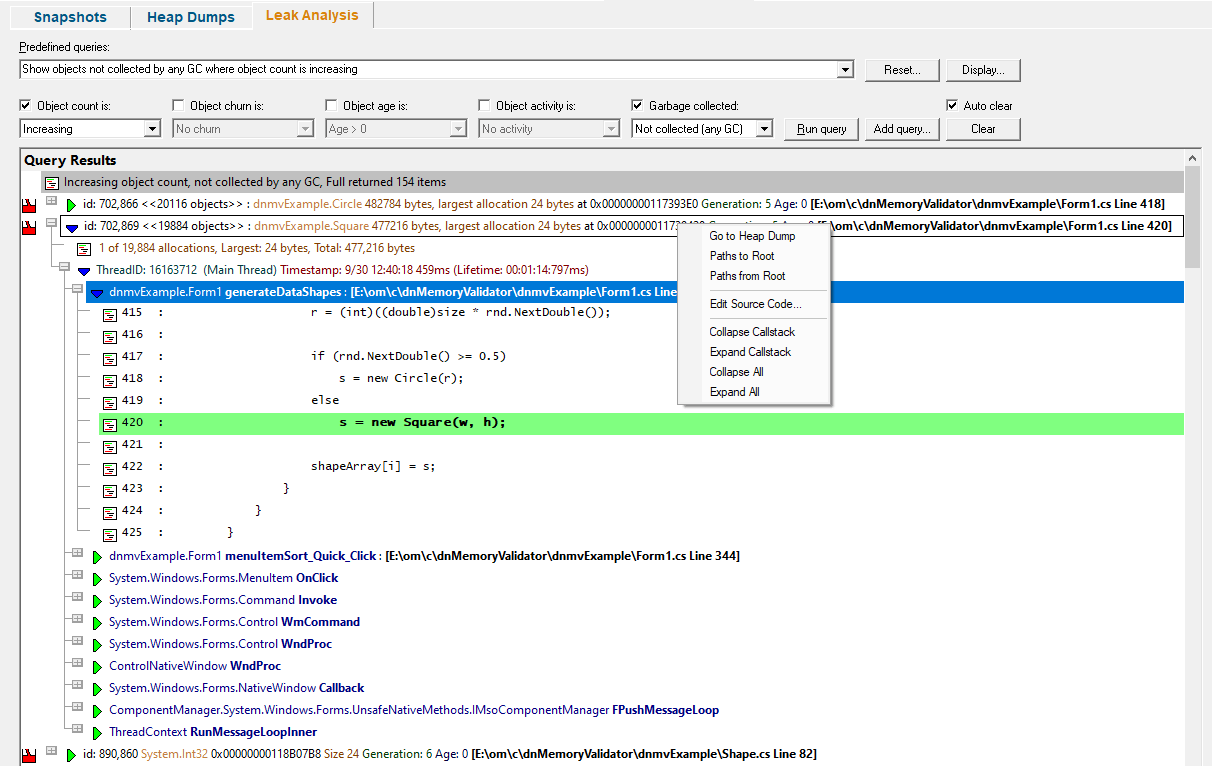

interactiveClick a part of the image below to jump straight to the help for that area.





dotnet-leak-analysis-main-with-menu





Displaying Data



Data from each query is displayed in the tree control.



Each query is prefixed with a line that describes the query that was run.



 dotnet-leak-analysis-query-description



The query results are displayed after the description.



Each line has an icon at the left, indicating its type, and has an explanatory tooltip:



allocation-dotnet-type-symbol-tooltips



The text on each line indicates:



datatype (if known)

size

allocation address/handle value

source file and line number (if available) where the allocation occurred

optional event sequence id at the beginning of the line



There are two types of callstack representation.

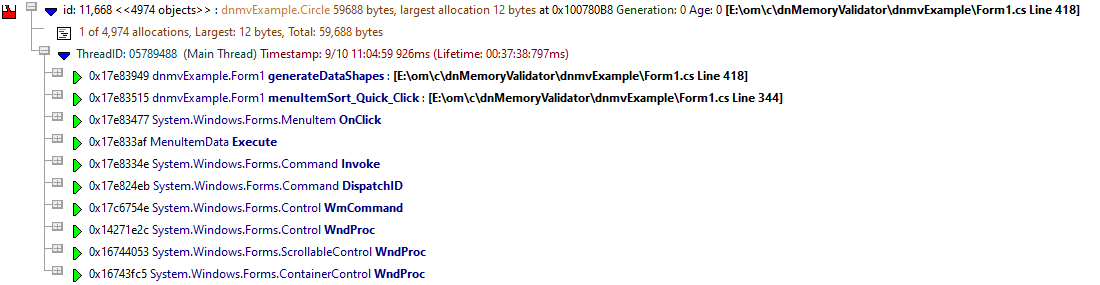

The first callstack representation is that of an object that has been allocated on a callstack that has never had any objects allocated on it that have been garbage collected.



callstackLeakAnalysisNotCollected



The second callstack representation is that of an object that has been allocated on a callstack that has had objects allocated on it garbage collected.



callstackLeakAnalysisCollected



This colouring is controlled by the Enhanced callstack colouring option on the Callstack settings of the settings dialog.





Display Style



Before displaying the data from a query the data needs to meet the criteria specified by the display style. This is a simple filter based on the availability of source code, and where that source code is on the callstack. The reason for this is that allocations (causing memory leaks) in your source code are fixable, whereas allocations in 3rd party code, or allocations that don't have source code are not fixable because you don't have access to the source code. This doesn't mean you should ignore such allocations as they may be caused by a side effect of one of your allocations or a reference from an object you control, but the ability to filter the data this way can greatly simplify the scope of the query results you are examining and lead to greater insight.


In addition to the display style, data is also displayed according to a callstack group critieria: display all callstacks, or group similar callstacks together.



Both of these styles can be edited using the .Net Leak Analysis display settings dialog.



Display... instructionStep displays the .Net Leak Analysis display settings dialog





Defining a Query



A query is defined by five criteria which need to be matched to put each object into the query results.



 dotnet-leak-analysis-creating-a-query



To use a criteria in a query enable the appropriate check box.



Object count



Increasing instructionStep object count increases each generation

Increasing or stable instructionStep object count increases or remains stable each generation

Decreasing instructionStep object count decreases each generation

Decreasing or stable instructionStep object count decreases or remains stable each generation



Object churn



No Churn instructionStep There is no object churn

N instructionStep Object has no object churn for N generations



[where N is list of numbers representing each generation except the current generation]



Object age



Age > 0 instructionStep Any object older than 0

N instructionStep Object age is greater than the specified age



[where N is list of numbers representing each generation except the current generation]



Object activity



No activity instructionStep No object activity

N instructionStep Object has no activity for N generations



[where N is list of numbers representing each generation except the current generation]



Garbage collected



Collected callstack instructionStep Object allocated on a callstack that previous deallocated objects were allocated on

Not collected callstack instructionStep Object allocated on a callstack that no deallocated objects were allocated on

Collected (recent GC) instructionStep Object of a type that has been collected in a recent GC

Not collected (recent GC) instructionStep Object of a type that has not been collected in a recent GC

Collected (any GC) instructionStep Object of a type that has been collected in any GC

Not collected (any GC) instructionStep Object of a type that has been collected in any GC





Predefined Queries



Setting up queries can be time consuming and tedious. To help with this there are some built-in predefined queries.



 dotnet-leak-analysis-predefined-query



Predefined queries instructionStep select a query to use. The controls that define a query will be updated to match the selected query definition.



The default predefined queries are:



oRising count, no churn

oRising count, no churn, previous allocations collected on same callstack

oRising count, no churn, previous allocations not collected on same callstack

oRising or stable count, no activity

oRising or stable count, no activity, previous allocations collected on same callstack

oRising or stable count, no activity, previous allocations not collected on same callstack

oNo churn for 1 generation and no activity for 1 generation

oNo churn for 2 generations and no activity for 2 generations

oNo churn for 3 generations and no activity for 3 generations

oNo activity for 3 generations

oShow objects collected by GC

oShow objects collected by any GC

oShow objects not collected by any GC

oShow objects not collected by any GC where object count is increasing

oShow objects not collected by 3 GCs where object count is increasing

oShow objects not collected by any GC where no object activity

oShow objects not collected by 3 GCs where no object activity



Add query instructionStep a new query is formed using the selection in the six combo boxes described in the Defining a Query section. The query is added to the list of predefined queries.



Reset instructionStep reset the list of predefined queries to the default predefined queries. All custom predefined queries will be lost.





Running Queries



The controls at the top left define how queries are run and managed.



 dotnet-leak-analysis-running-query



Run query instructionStep all objects in the current generation are compared to the current query definition. If they match the query they are displayed according to the display style rules.



Add query instructionStep a new query is formed using the selection in the six combo boxes. The query is added to the list of predefined queries.



Clear instructionStep all query results are removed



Auto clear instructionStep if selected all previous query results will be removed each time a new query is run





Leak Analysis view popup menuright_mouse_button



The following popup menu provides options for filtering and examining data in more detail.



dotnet-leak-analysis-popup-menu





right_mouse_buttonMenu option: Go to Heap Dump, Paths to Root, Paths from Root



The following options are only active for .Net object types. They are disabled for native object types.



Go to Heap Dump instructionStep Find the heap dump entries for the selected objects.



Paths to Root instructionStep For the selected objects display all the paths from the object to the most recent heap dump roots with the Paths to Root dialog.



Paths from Root instructionStep For the selected objects display all the paths most recent heap dump roots to the live objects with the Paths to Root dialog.





right_mouse_buttonMenu option: editing source code



Edit Source Code... instructionStep opens the default or preferred editor to edit the source code





right_mouse_buttonMenu options: Collapse Hotspot, Expand Hotspot, Collapse All, Expand All



Collapse Hotspot or Expand Hotspot instructionStep simply shows and hides data item information, the same as using the expand-symbol or collapse-symbolbuttons



Collapse All or Expand All instructionStep collapses or expands all callstack entries
