Summary Display Layout

Scroll Prev Top Next More

The summary display provides several different layout methods



Adaptive (Mixed)

Adaptive (Layered)

Native and .Net (Mixed)

Native and .Net (Layered)

Native only

.Net only (minimal set of panels)

.Net only (all .Net related panels)



Setting the summary display layout



To set the Summary display layout



menu Settings menu instructionStep Summary Display Layout... instructionStep shows the Summary display layout chooser dialog

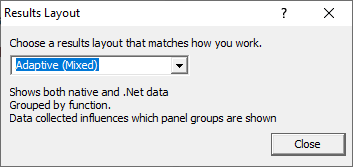

 summaryDisplayLayoutChooser





Changing the layout changes how the summary display arranges it's panels.



Two of the layouts are adaptive and change in response to the data collected and also to the data collection settings (when there is no data collected).



Examples of each layout are shown below.





Adaptive (Mixed)

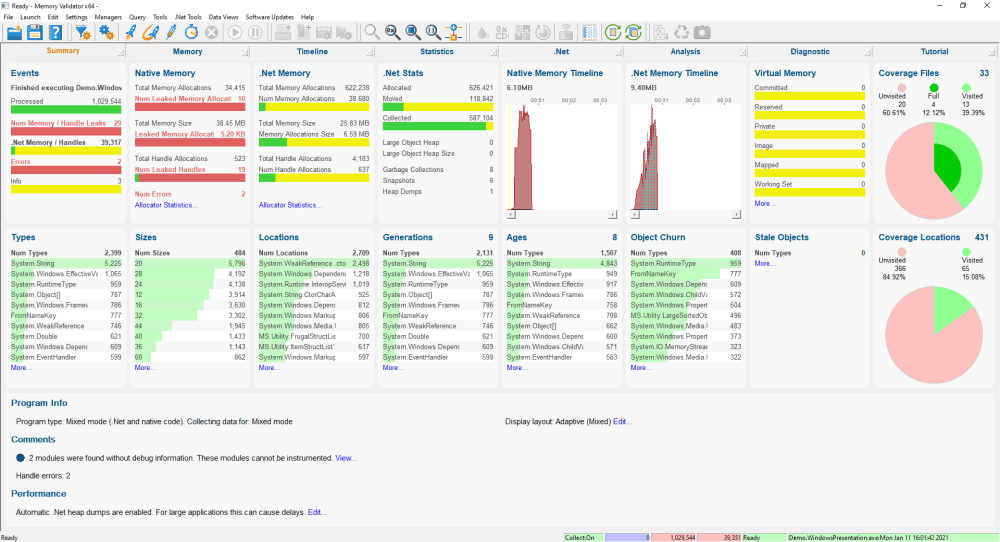

 resultsLayoutAdaptiveMixed





The display shows all native and .net panels, arranged so that all the statistics groups are on the bottom layer and all other statistics are on the top layer.



For mixed mode applications, both native and .Net panels are shown.



For native applications only native panels are shown. For .Net applications only .Net panels are shown.





Adaptive (Layered)



 resultsLayoutAdaptiveLayered



The display shows all native and .net panels, arranged so that all native statistics are on the top layer and all .Net statistics are on the bottom layer.



For mixed mode applications, both native and .Net panels are shown.



For native applications only native panels are shown. For .Net applications only .Net panels are shown.





Native and .Net (Mixed)

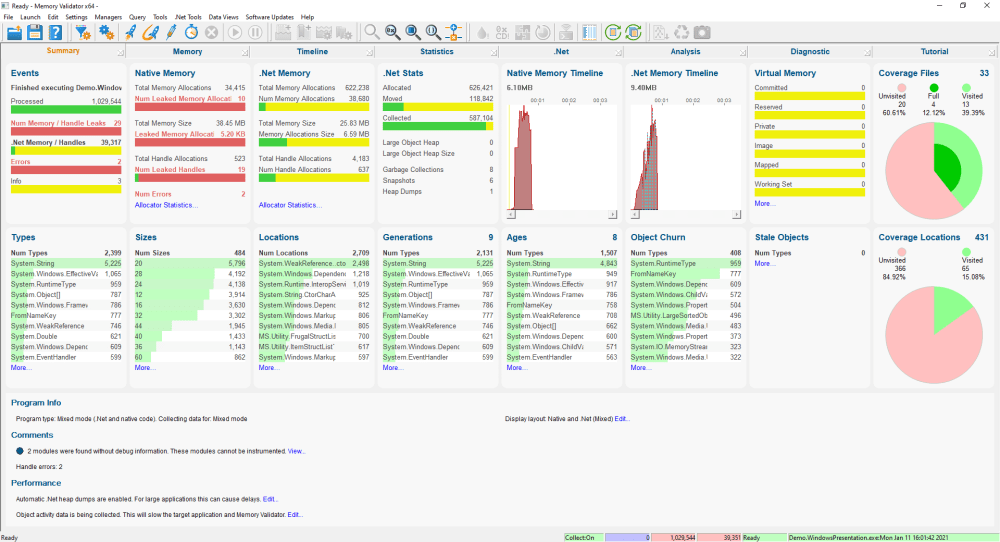

 resultsLayoutNativeAndDotNetMixed





The display shows all native and .net panels, arranged so that all the statistics groups are on the bottom layer and all other statistics are on the top layer.



note Types, Sizes and Locations apply to both native data and .Net data.





Native and .Net (Layered)

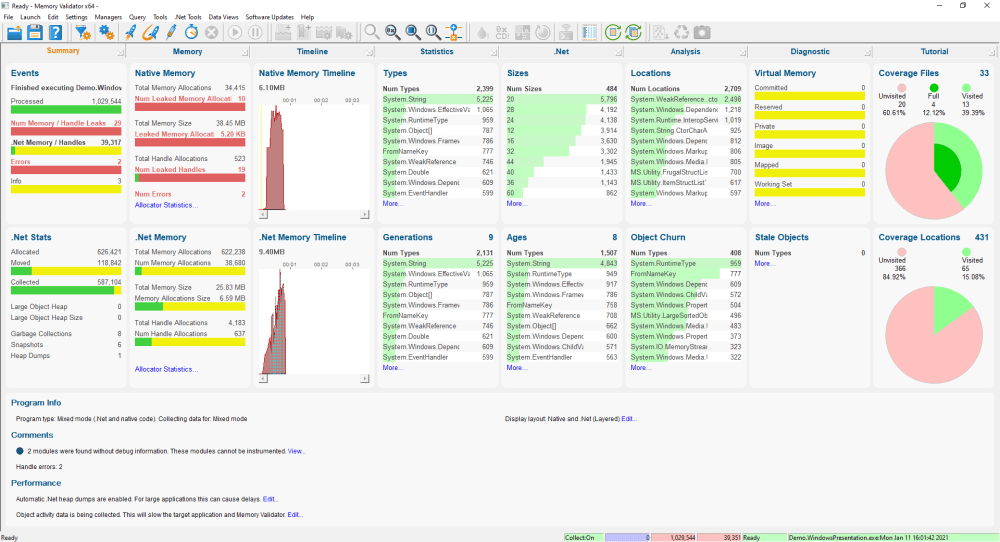

 resultsLayoutNativeAndDotNetLayered





The display shows all native and .net panels, arranged so that all native statistics are on the top layer and all .Net statistics are on the bottom layer.



note Types, Sizes and Locations apply to both native data and .Net data.





Native only

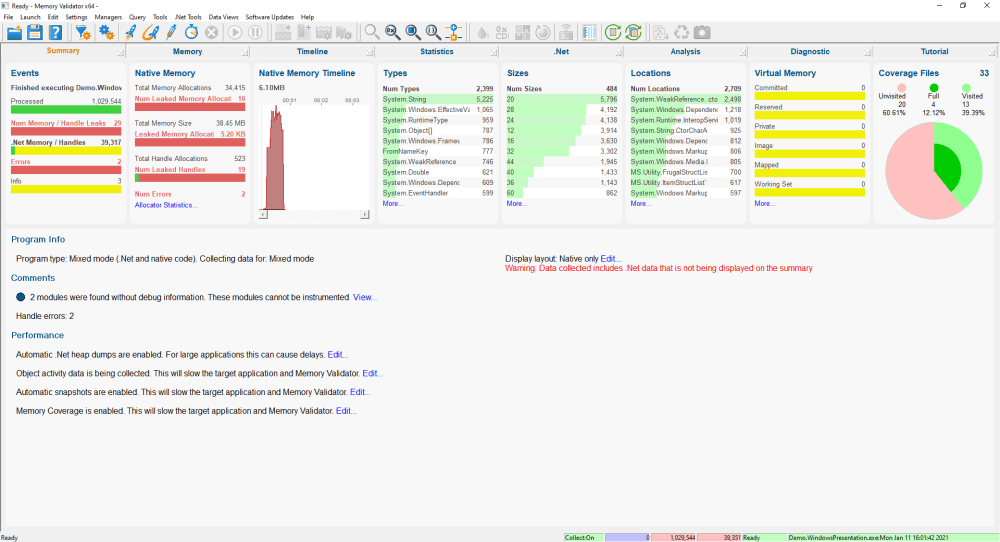

 resultsLayoutNativeOnly





The display shows only native panels.





.Net only (minimal set of panels)

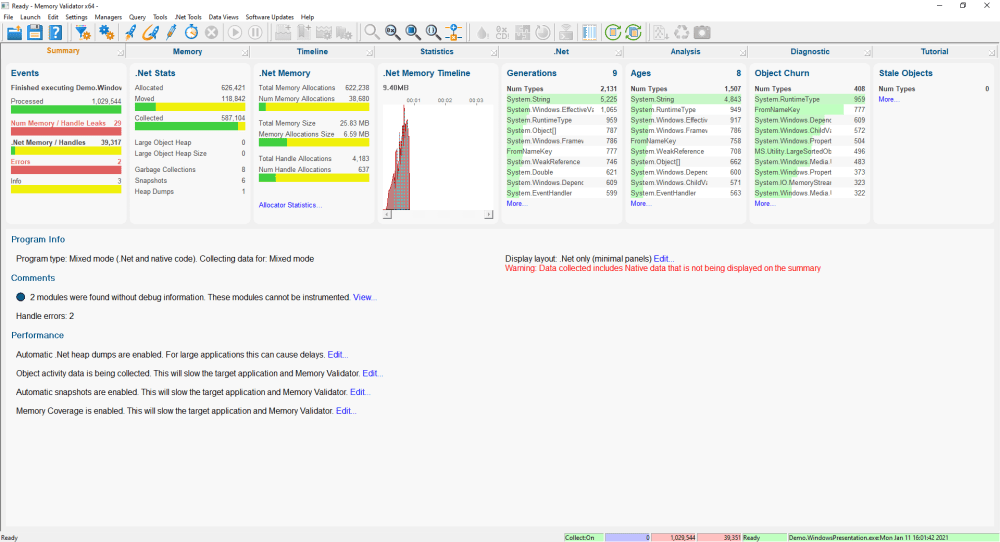

 resultsLayoutDotNetOnlyMin





The display shows only .Net panels. A minimal selection of panels has been selected so that they fit on one line.





.Net only (all .Net related panels)

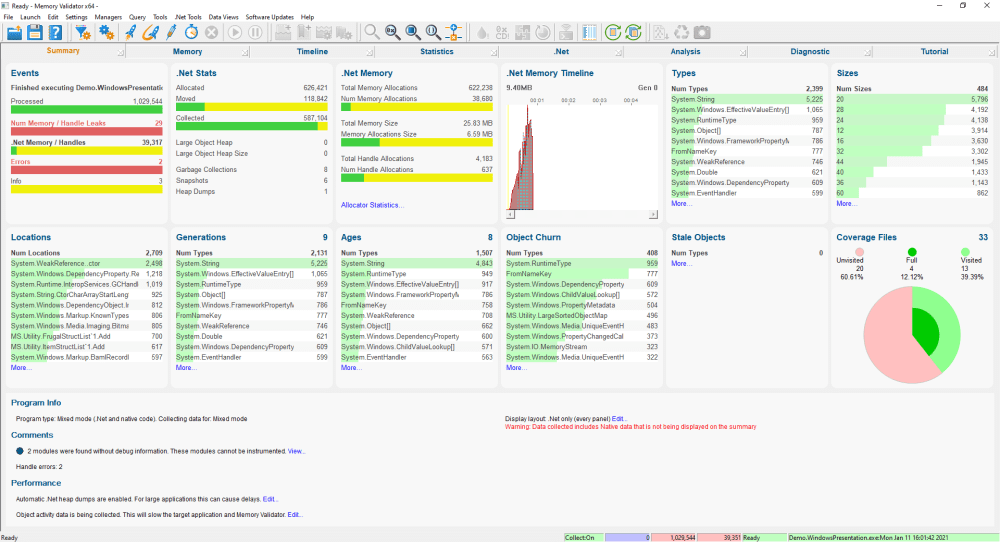

 resultsLayoutDotNetOnlyMax





The display shows only .Net panels. All relevant .Net panels are shown, resulting in a two line display.
