Decoding a symbol relative crash address

Scroll Prev Top Next More

Scenario:



A customer has supplied you with a crash report containing a callstack with symbol relative offsets from DLLs. The callstack also indicates which module relates to which address.



Example Data:

ntoskrnl.exe!KeSynchronizeExecution+0x2246
ntoskrnl.exe!KeWaitForMultipleObjects+0x135e
ntoskrnl.exe!KeWaitForMultipleObjects+0xdd9
ntoskrnl.exe!KeWaitForSingleObject+0x373
ntoskrnl.exe!KeStallWhileFrozen+0x1977
ntoskrnl.exe!_misaligned_access+0x13f9
ntoskrnl.exe!KeWaitForMultipleObjects+0x152f
ntoskrnl.exe!KeWaitForMultipleObjects+0xdd9
ntoskrnl.exe!KeWaitForSingleObject+0x373
ntoskrnl.exe!NtWaitForSingleObject+0xb2
ntoskrnl.exe!setjmpex+0x34a3
ntdll.dll!ZwWaitForSingleObject+0xa
KERNELBASE.dll!WaitForSingleObjectEx+0x98
svlcoveragevalidatorstub_x64.dll!sendCommandLineAndStartTimeToGUI+0x2868
svlcoveragevalidatorstub_x64.dll!setValidatorFeedbackHookingComplete+0x1fa6
svlcoveragevalidatorstub_x64.dll!svl_sendMessageRawToUserInterface+0x21837
svlcoveragevalidatorstub_x64.dll!svl_sendMessageRawToUserInterface+0x218cb
KERNEL32.DLL!BaseThreadInitThunk+0x22
ntdll.dll!RtlUserThreadStart+0x34



This is real data from a bug at Software Verify Ltd. This is one thread from many in a dump relating to a deadlock bug we were investigating.



Question:

How do you decode these symbol relative offsets?



Answer:

In the above data we can see a callstack containing entries for ntoskrnl.exe, ntdll.dll, kernelbase.dll, kernel32.dll and svlcoveragevalidatorstub_x64.dll.



All the modules are Microsoft DLLs except for one DLL, which is part of C++ Coverage Validator, one of our tools.



To decode these values, we load svlCoverageValidatorStub_x64.dll into TDSBrowser.exe (64 bit), then for each symbol we take the following actions.



For our purposes here, we're going to show how to convert one symbol. We're going to use the first symbol from svlCoverageValidatorStub_x64.dll in the example data above.



svlcoveragevalidatorstub_x64.dll!sendCommandLineAndStartTimeToGUI+0x2868



Type the symbol name into the Name Filter field, then click Filter. This makes it easy to find the symbol we want.



 symbolNameFilter



Once we have found the symbol, right click on the symbol to display the context menu and choose Offset from this symbol....



 symbolRelativeQuery



An alternate method is to click on the symbol to select it, then from the Query menu choose Find Symbol with Symbol Relative Address....



Or, from the Query menu choose Find Symbol with Symbol Relative Address... then choose the symbol you want from the combo box.



 FindSymbolWithSymbolRelativeAddress

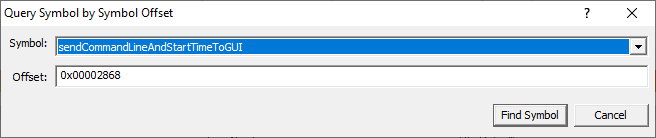

Type the offset into the dialog (hex values must be prefixed with 0x) and click OK.



 symbolRelativeDialog

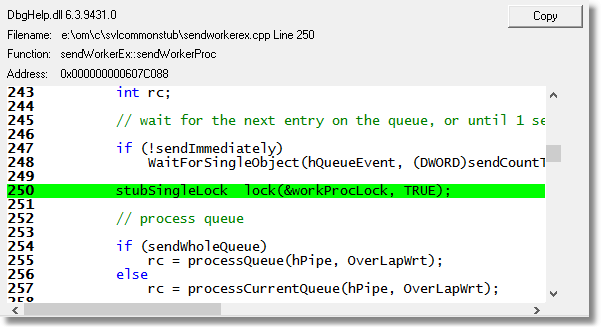

The appropriate location in the code is found and displayed.



 relativeSymbolSourceCode



Results:

Repeating the process for the data shown above resulted in this information.



svlcoveragevalidatorstub_x64.dll!sendCommandLineAndStartTimeToGUI+0x2868                sendWorkerEx::sendWorkerProc        sendworkerex.cpp 250
svlcoveragevalidatorstub_x64.dll!setValidatorFeedbackHookingComplete+0x1fa6        stubSendComm::stubSendProc                stubsendcomm.cpp 611
svlcoveragevalidatorstub_x64.dll!svl_sendMessageRawToUserInterface+0x21837                memcpy
svlcoveragevalidatorstub_x64.dll!svl_sendMessageRawToUserInterface+0x218cb                wcscpy
