Memory Validator Help

Navigation: Examples > Example Application Launched from a Service

Monitoring the application launched from the service

Scroll Prev Top Next More



Once the example service and example application are built, the next step is to test them using Memory Validator.



Installing the service



If you haven't installed the service, do the following:



open an administrator mode cmd prompt



navigate to the directory containing the serviceWithAProcess.exe to install



serviceWithAProcess.exe -install





Monitoring the application launched by the service



Prerequisites



example service has been installed, but not started (if service has been started, stop the service)



example service and example application have been built (application must use the NT Service API as demonstrated in attachToMemoryValidator())



example application executable is in the same directory as the example service (this is only a requirement for the example)





The following process is used to monitor the application launched by the service:



From the Launch menu choose Services > Monitor a Service...

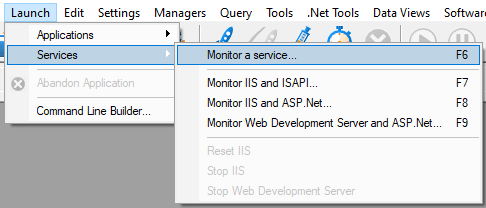

 launch-menu-monitor-a-service



The Monitor a service dialog is displayed

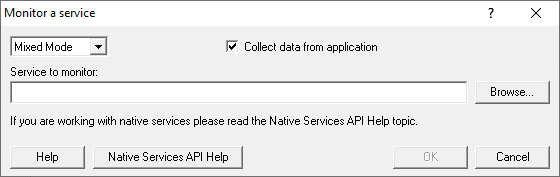

 monitor-a-service-empty



Use Browse... to open the file chooser dialog and choose the application that will be monitored by Memory Validator. This is the application that is launched by the service. Do not choose the service

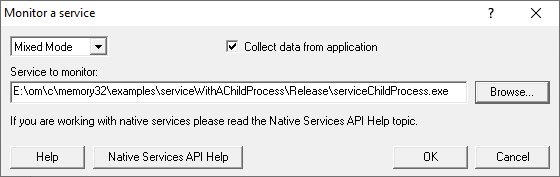

 monitor-a-service-child-process



Click OK



Memory Validator sets up a variety of parameters then displays a dialog box asking you to start you service. Click OK to dismiss the dialog



 please-start-your-service



Start your service. For the example serviceWithAChildProcess.exe do the following

oopen an administrator mode cmd prompt

onavigate to the directory containing the serviceWithAProcess.exe to start

oserviceWithAProcess.exe -start

oserviceWithAProcess.exe starts and launches the child process serviceChildProcess.exe that will be monitored



The target application contacts Memory Validator



Data is collected until the target process finishes executing



Memory Validator displays the results
