Memory Validator Help

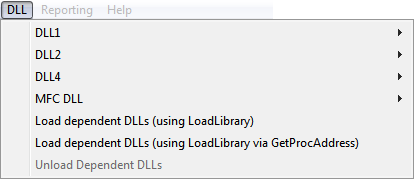

The DLL menu



The DLL menu demonstrates the capability of Memory Validator to detect dynamic loading and unloading of DLLs via one of the following Win32 calls:



LoadLibrary()

LoadLibraryEx()

FreeLibrary()





example-dll





DLL1, DLL2, DLL4, and MFC DLL



These four DLLs can each be loaded and unloaded and each has a test function in it, for example:



menu DLL1 submenu instructionStep ...



Load DLL instructionStep load the DLL


Unload DLL instructionStep unload the DLL


Test DLL instructionStep call the supplied test function in the DLL



The test function performs some memory allocation functions, which may result in memory leaks.



See the CTeststakView class methods: OnDllLoaddll1(), OnDllUnloaddll1(), OnDllTestdll1(), etc





Dependent DLLS



The next three options load and unload DLLs having dependent DLLs which should also be loaded:



Load Dependent DLLs (using LoadLibrary) instructionStep loads dllADependentOnB.dll


This is dependent on dllBDependentOnC.dll which, in turn, is dependent on dllC.dll


Load Dependent DLLs (using LoadLibrary via GetProcAddress) instructionStep Similar to the above, but different methods


Unload Dependent DLLs instructionStep frees the library if loaded


See the CTeststakView class methods: OnDllLoaddependentdlls(), OnDllLoaddependentdlls_LLGPA() and OnDllUnloaddependentdlls().
