Decoding an absolute crash address

Scroll Prev Top Next More

Scenario:



A customer has supplied you with a crash report containing a callstack with addresses. The callstack also indicates which module relates to which address.

The customer has also supplied you with a list of module load addresses.



Example Data:

Exception code: C0000005 ACCESS_VIOLATION
Fault address:  0x005f5eec (base 0x00400000) C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe
Exception Parameters:
   0: 0x00000000 [Read Error]
   1: 0x035f0034 [Address]

Registers:
   EAX:035F0034
   EBX:00000000
   ECX:FFFDD000
   EDX:00002370
   ESI:006F7D58
   EDI:035F0034
   CS:EIP:0023:005F5EEC
   SS:ESP:002B:0018FE14  EBP:0018FE3C
   DS:002B  ES:002B  FS:0053  GS:002B
   Flags:00010202

StackTrace

C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe : 0x00400000 : 0x005F249C
C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe : 0x00400000 : 0x005F23C3
C:\Windows\syswow64\msvcrt.dll : 0x75D70000 : 0x75D7C3E4
C:\Windows\syswow64\msvcrt.dll : 0x75D70000 : 0x75D836B6
C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe : 0x00400000 : 0x0060AA42
C:\Windows\syswow64\kernel32.dll : 0x754D0000 : 0x754E3365
C:\Windows\SysWOW64\ntdll.dll : 0x77920000 : 0x77959F6D
C:\Windows\SysWOW64\ntdll.dll : 0x77920000 : 0x77959F40
C:\Windows\SysWOW64\ntdll.dll : 0x77920000 : 0x77959F40



This is data from a real crash a few years ago, from C++ Memory Validator 5.80.



Question:

How do you decode these absolute addresses?



Answer:

In the above data we can see a callstack containing entries for ntdll.dll, msvcrt.dll, and memoryValidator.exe.



All the modules are Microsoft DLLs except for the EXE, which is part of C++ Memory Validator, one of our tools.



To decode these values, we load memoryValidator.map into MapFileBrowser, then for each symbol we take the following actions.



For our purposes here, we're going to show how to convert one symbol. We're going to use the first symbol from memoryValidator.exe in the example data above.



   0x005f5eec (base 0x00400000)



The address is 0x005f5eec. The DLL loaded at 0x00400000. You'll notice the load address for all MemoryValidator.exe entries is 0x00400000.

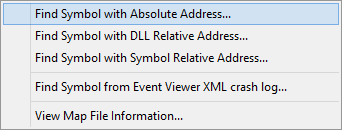

From the Query menu choose Find Symbol with Absolute Address....



 FindSymbolWithAbsoluteAddress

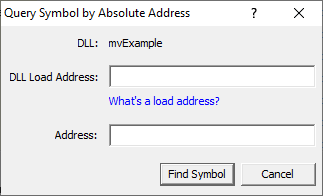

The Query Symbol by Absolute Address dialog is displayed.



 QuerySymbolByAbsoluteAddressDialog



Type the DLL load address into the DLL Load Address field. Prefix any hexadecimal addresses with 0x.



Type the symbol address into the Address field. Prefix any hexadecimal addresses with 0x.

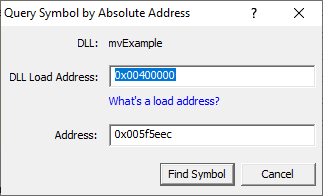

Click the Find Symbol button.



 QuerySymbolByAbsoluteAddressDialogWithData

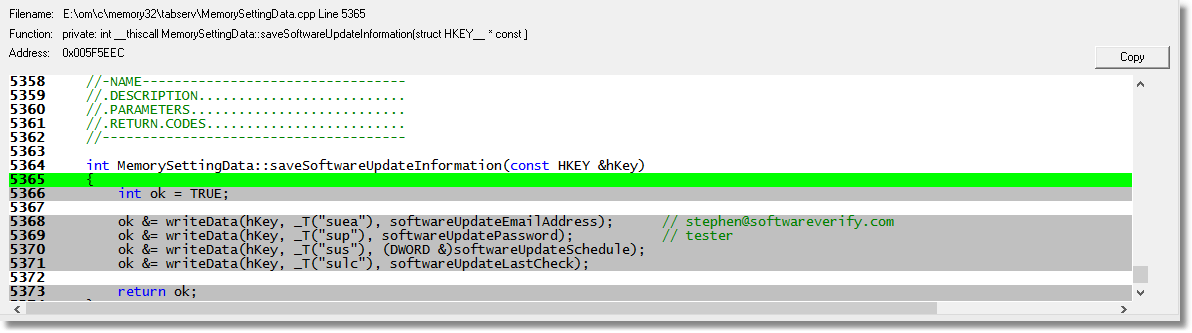

The appropriate location in the code is found and displayed.



 absoluteSymbolSourceCode



Results:

Repeating the process for the data shown above resulted in this information.



0x005f5eec (base 0x00400000) C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe        MemorySettingsData::saveCoverageFilters MemorySettinData.cpp 5365
C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe : 0x00400000 : 0x005F249C        MemorySettingData::writeRegistrySimple MemorySettingData.cpp 3827
C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe : 0x00400000 : 0x005F23C3        MemorySettingData::writeRegistrySimple MemorySettingData.cpp 3821
C:\Windows\syswow64\msvcrt.dll : 0x75D70000 : 0x75D7C3E4
C:\Windows\syswow64\msvcrt.dll : 0x75D70000 : 0x75D836B6
C:\Program Files (x86)\Software Verification\C++ Memory Validator\memoryValidator.exe : 0x00400000 : 0x0060AA42        std::_Tree<...very big template...>::erase xtree Line 351
C:\Windows\syswow64\kernel32.dll : 0x754D0000 : 0x754E3365
C:\Windows\SysWOW64\ntdll.dll : 0x77920000 : 0x77959F6D
C:\Windows\SysWOW64\ntdll.dll : 0x77920000 : 0x77959F40
C:\Windows\SysWOW64\ntdll.dll : 0x77920000 : 0x77959F40





Help! I have a crash address but I don't know what the load address is? What do I do?



You need to read about load addresses.
