Navigation: The User Interface > Settings > Data Collection Settings > Filters

Load Settings Pattern Match

Scroll Prev Top Next More

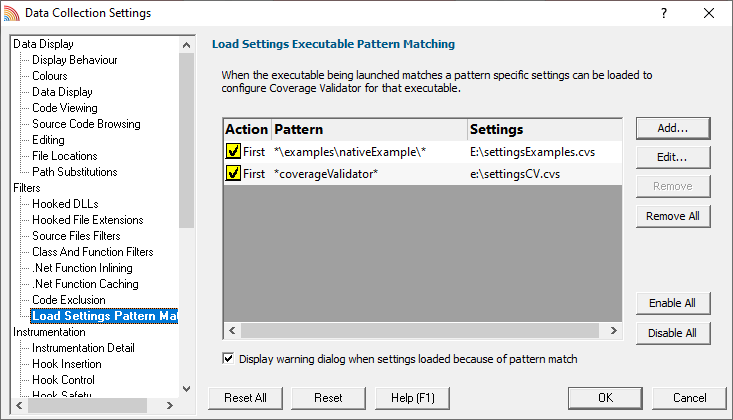

The Load Settings Pattern Match tab allows you to configure loading of different settings depending on the executable being launched (or relaunched).



 LoadSettingsPatternMatch





The grid shows one pattern match per line.


The buttons alongside allow you to Add, Edit and Remove patterns that you have created. You can also enable and disable them all.


Add... instructionStep display the pattern match dialog to create a pattern to match.



Edit... instructionStep display the pattern match dialog to edit the selected pattern.



Remove... instructionStep delete the selected pattern.



Remove All... instructionStep delete all selected patterns.



Enable All... instructionStep enable all patterns.



Disable All... instructionStep disable all patterns.



Pattern Match Dialog

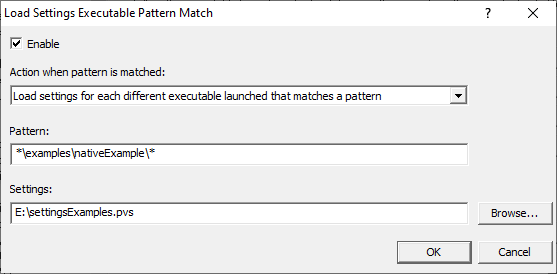

The pattern match dialog allows you to create and edit pattern matches.



 patternMatchDialog



Enable instructionStep enable or disable this pattern.



Action instructionStep how to evaluate if this pattern is matched.



Load settings for first executable... instructionStep the first executable that matches a pattern causes the settings to be loaded.

Load settings for each executable... instructionStep each executable that matches a pattern causes the settings to be loaded provided it is not the same executable that previously loaded the settings.

Load settings for every executable... instructionStep every executable that matches a pattern causes the settings to be loaded.

When a different pattern matches the first/each status is reset.



Pattern instructionStep a text pattern, including the * wildcard, to match an executable path.



 Examples:

   *\examples\nativeExample\*
   c:\tests\*
   e:\dev\myProject\release\*.exe



Settings instructionStep the full path to the settings you want to load if the action and pattern match an executable.





How does the pattern matching work?



It is probably easiest to demonstrate how pattern matching works with some examples.


Let's assume we have two patterns:



*\examples\nativeExample\* that will load e:\settingsExamples.cvs

*coverageValidator* that will load e:\settingsCV.cvs.



We'll cover each of the possible action criteria for a sequence of application launches, showing which settings are loaded and why.



Load settings for first executable... instructionStep the first executable that matches a pattern causes the settings to be loaded.



Launched application

Settings loaded

Reason

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

1st application, new pattern

e:\examples\nativeExample\release\nativeExample.exe


repeat application, same pattern

e:\examples\nativeExample\debug\nativeExample.exe


2nd application, same pattern

c:\program files (x86)\software verify\coverage validator x86\coverageValidator.exe

e:\settingsCV.cvs

1st application, new pattern

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

1st application, new pattern



Load settings for each executable... instructionStep each executable that matches a pattern causes the settings to be loaded provided it is not the same executable that previously loaded the settings.



Launched application

Settings loaded

Reason

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

new application, new pattern

e:\examples\nativeExample\release\nativeExample.exe


repeat application, same pattern

e:\examples\nativeExample\debug\nativeExample.exe

e:\settingsExamples.cvs

new application, same pattern

c:\program files (x86)\software verify\coverage validator x86\coverageValidator.exe

e:\settingsCV.cvs

new application, new pattern

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

new application, new pattern



Load settings for every executable... instructionStep every executable that matches a pattern causes the settings to be loaded.


Launched application

Settings loaded

Reason

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

Every application

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

Every application

e:\examples\nativeExample\debug\nativeExample.exe

e:\settingsExamples.cvs

Every application

c:\program files (x86)\software verify\coverage validator x86\coverageValidator.exe

e:\settingsCV.cvs

Every application

e:\examples\nativeExample\release\nativeExample.exe

e:\settingsExamples.cvs

Every application





Warning



When a pattern is matched and the action criteria are satisfied the specified settings will be loaded.

A warning can be displayed at this point to remind you that the settings are being changed.



Display warning dialog... instructionStep the warning dialog will be displayed when the pattern match criteria are met.

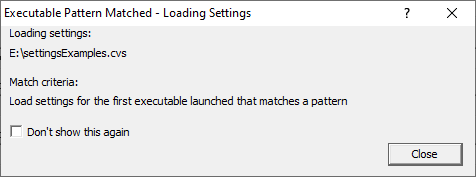

The warning dialog looks like this:



 patternMatchWarningDialog





Reset All - Resets all global settings, not just those on the current page.





Reset - Resets the settings on the current page.
